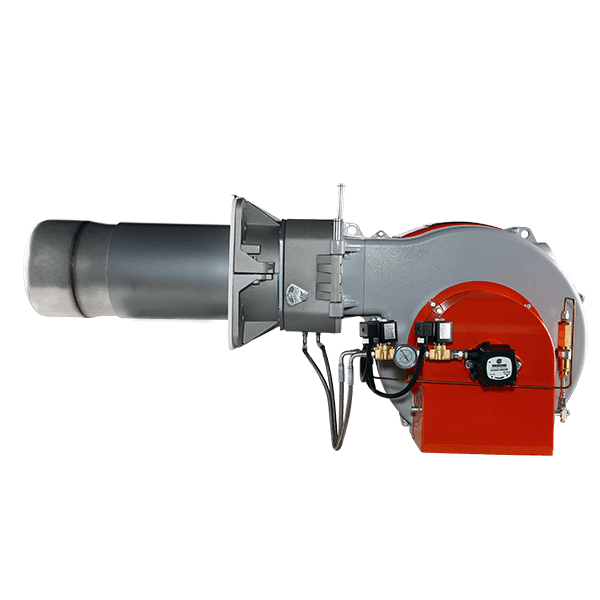

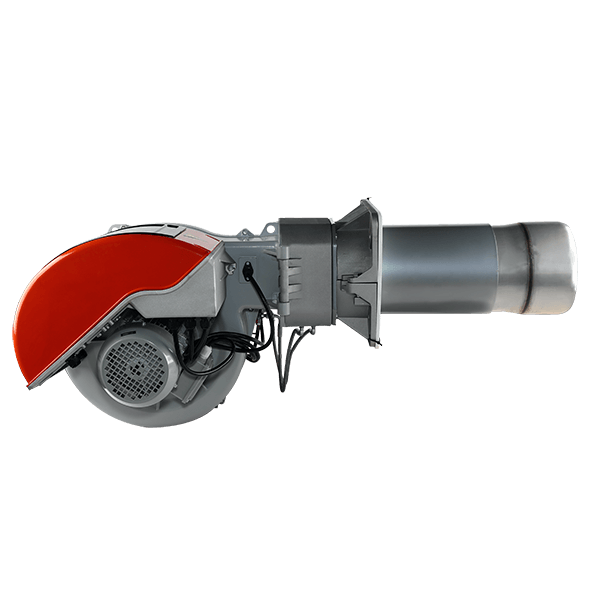

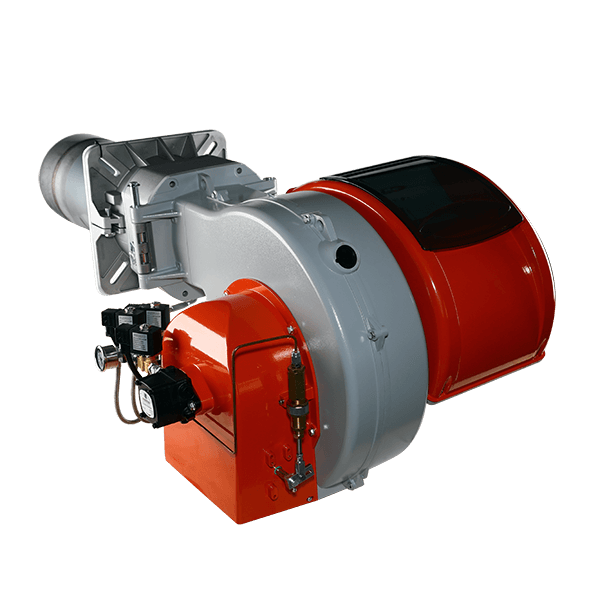

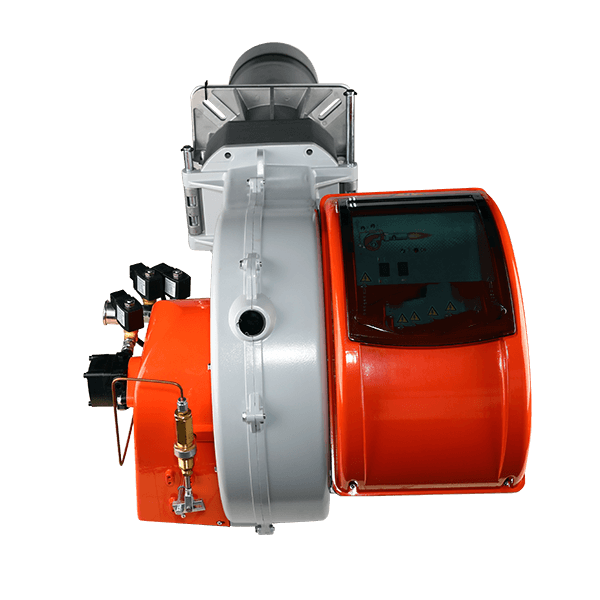

BYL130P Industrial burner Russia burner Diesel burner boiler accessory heating device
BYL130P is a heating device which burns heating oils, diesel fuel or other similar fuels.
Model: BYL130P
Brand: Baiyan
Fuel: Diesel
Output Power: 400-1300kw
Control Mode: two stage
Applicable Power Supply: AC 380v 50Hz
Applicable Boiler: 1.5T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!
Technical Parameters | ||||
Model | BY120P | BY110LXP | BY120MC | |
Output Power | Kw | 240-1200 | 180-1200 | 240-1200 |
Control Mode | two stage flame | slide two stage flame | slide two stage flame | |
Gas Consumption | Sm³/H | 24--120 | 18-120 | 24--120 |
Motor Power | kw | 1.5 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 54 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 1.1-1.4 | ||
Kw | 759-966 | |||
103*kcal/h | 650-830 | |||
Static Pressure | Kpa | 8--12 | 8--12 | 8--12 |
Dynamic Pressure | 8--10 | 8--10 | 8--10 | |
Dimension | mm | 1070*800*700 | ||
Weight | Kg | 87 | ||
