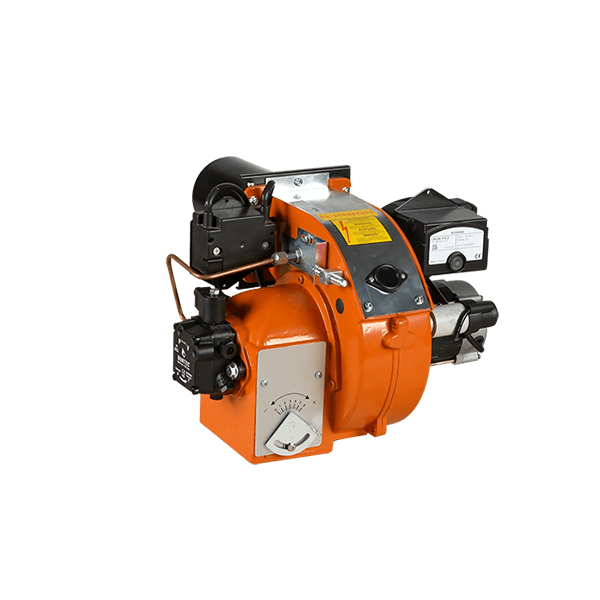

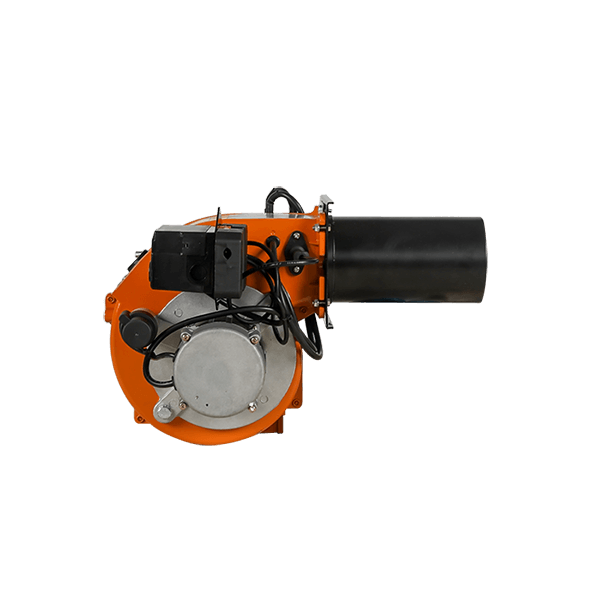

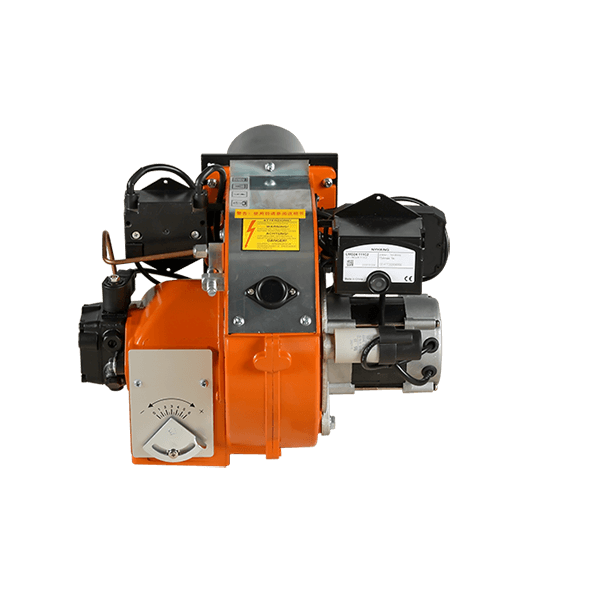

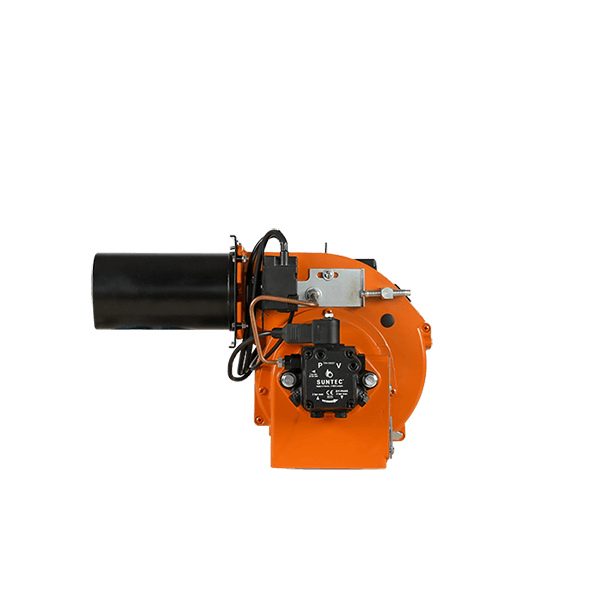

Hot Sale BYL14 Single Stage Diesel Burner Light Oil Burner for Industrial Boiler
Single Stage Diesel Burner BYL14 is a kind of combustion device mainly based on light oil fuel, mainly composed of oil atomizer and air regulator.
Model: BYL14
Brand: Baiyan
Fuel: Diesel
Output Power: 83-166kw
Control Mode: single stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.1T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!
Feature:
1. Diesel burner. single stage operation
2. Adjust the combustion air and air supply pipe.
3. Combustion intake with throttle valve. Manually adjust the air volume.
4. Completely close the damper when shutting down to avoid heat loss through the chimney.
5. The sliding boiler connection flange makes the blast pipe suitable for various types of boilers.
6. The device made of sound-absorbing material reduces fan noise.
7.7 pole socket for burner power and thermostat power
8. Gear pump oil supply circuit with pressure regulation and cut-off valve
Technical Parameters | |||||||
Model | BYL14 | BYL14P | BYL26 | BYL26P | BYL35 | BYL35P | |
Output Power | Kw | 83-166 | 190-310 | 178-391 | |||
Control Mode | single stage | two stage | single stage | two stage | single stage | two stage | |
Fuel Consumption | Kg/h | 7--14 | 16-26.1 | 15-33 | |||
Motor Power | kw | 0.18 | 0.25 | 0.37 | |||
Applicable power supply | AC 230v 50Hz | AC 230v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||||
NOx | ＜80 | ||||||
Applicable boiler | T | 0.1 | 0.4 | 0.2 | 0.3 | 0.3 | 0.4 |
Dimension | mm | 475*455*340 | 650*520*385 | 940*490*390 | |||
Weight | Kg | 18 | 18 | 32 | |||
