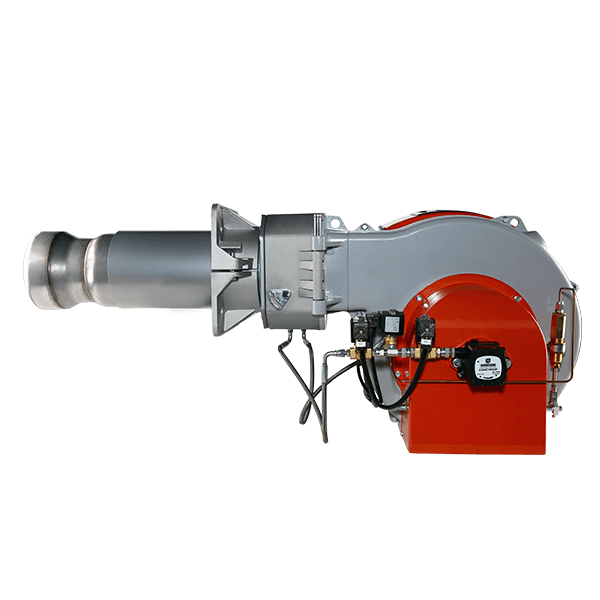

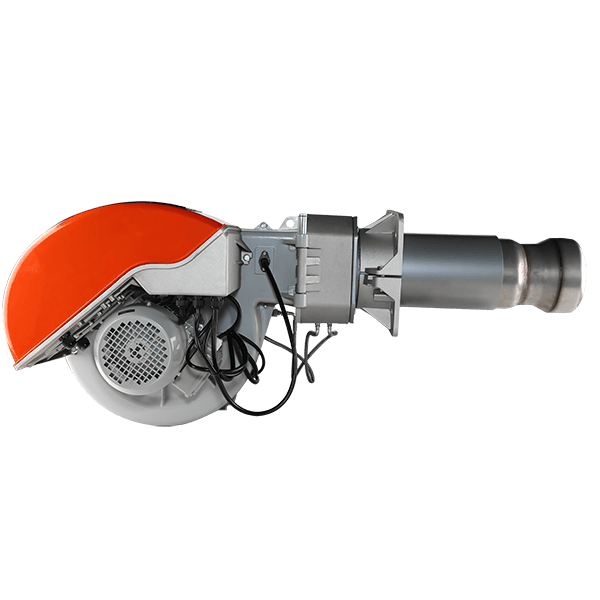

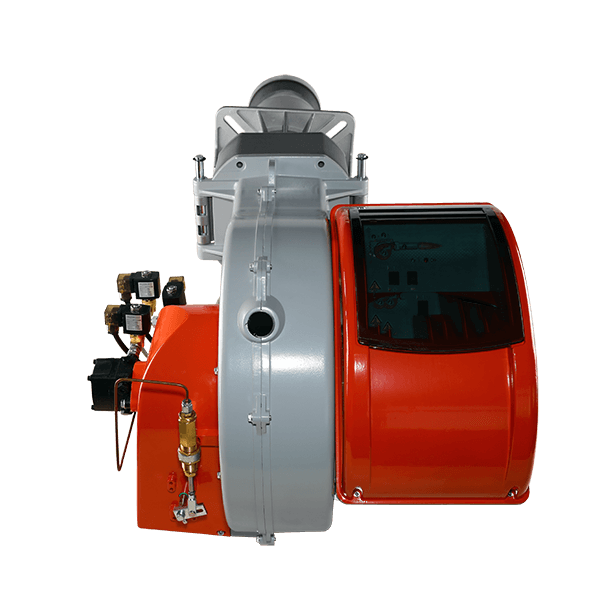

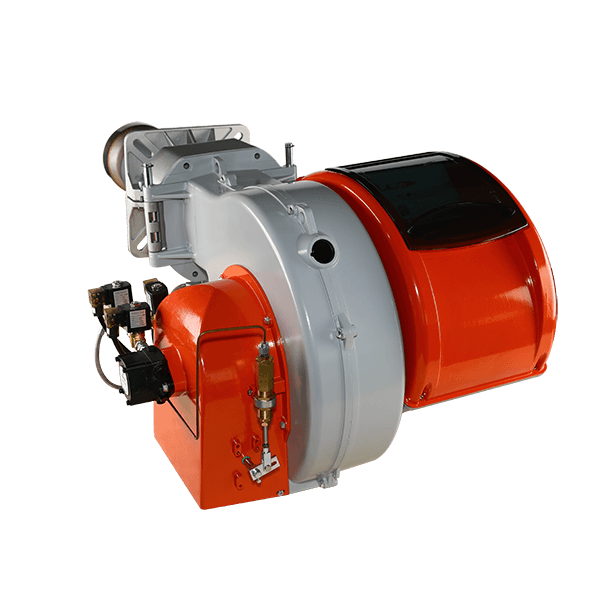

BYL105P oil burner industrial burner heating device burner
BYL105P provides the ignition of heating oil/diesel fuel used to heat either air or water via a heat exchanger.
Model: BYL105P
Brand: Baiyan
Fuel: Light Oil
Output Power: 320-105050kw
Control Mode: two stage
Applicable Power Supply: AC 380v 50Hz
Applicable Boiler: 1.2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!
Technical Parameters | |||||
Model | BYL45P | BYL60P | BYL85P | BYL105P | |
Output Power | Kw | 160-450 | 250-600 | 200-850 | 320-1050 |
Control Mode | two stage flame | ||||
Fuel Consumption | Kg/h | 13-38 | 21-50.6 | 16.9-71.6 | 27-88.5 |
Motor Power | kw | 0.5 | 0.65 | 1.1 | 1.5 |
Applicable power supply | AC 220v 50Hz | AC 400v 50Hz | AC 380v 50Hz | ||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T | 0.5 | 0.7 | 1 | 1.2 |
Dimension | mm | 1000*600*510 | 1000*600*510 | 1070*800*700 | 1070*800*700 |
Weight | Kg | 34 | 36 | 79 | 80 |
