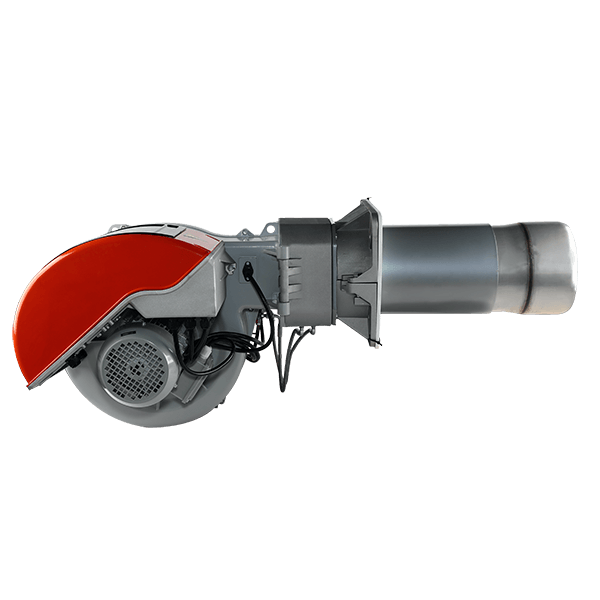

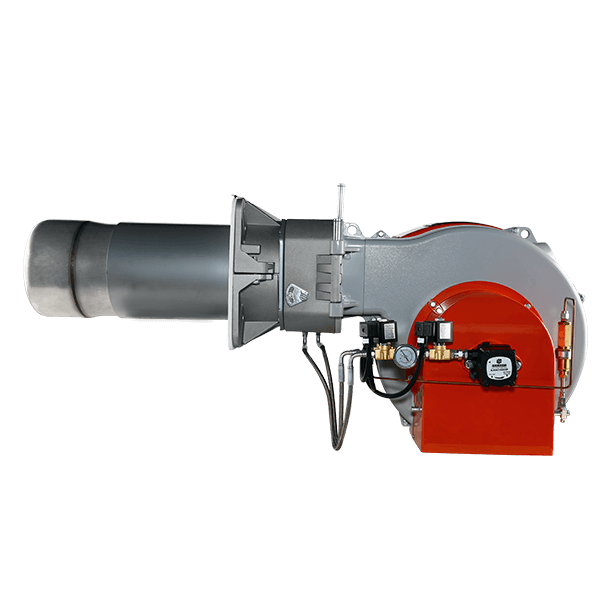

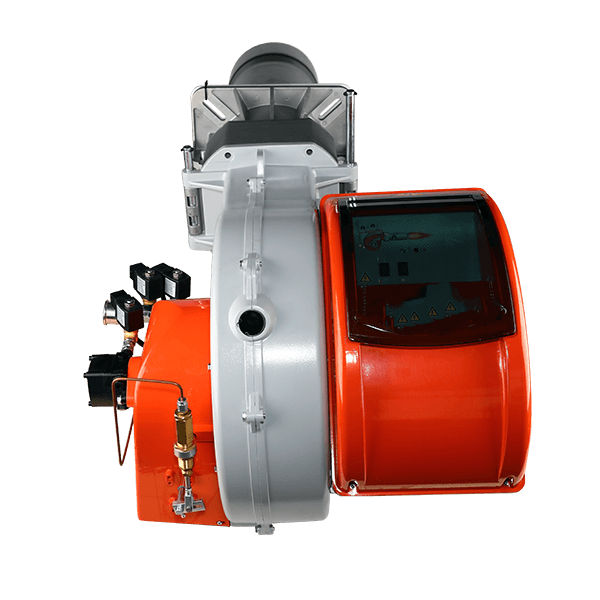

BYL160P heating device industrial burner baltur similar light oil burner two stage
An oil burner is a heating appliance that burns #1, #2 and #6 heating oil, diesel or other similar fuels. An oil burner is a component that connects to an oil furnace, water heater or boiler. [1] It ignites heating oil/biodiesel fuel used to heat air or water through a heat exchanger. The fuel is atomized into a fine spray, usually by forcing the fuel under pressure through nozzles that create flames with specific flow rates, spray angles and patterns (variations in cone shape).
Model: BYL160P
Brand: Baiyan
Fuel: Light Oil
Output Power: 500-1600kw
Control Mode: two stage
Applicable Power Supply: AC 380v 50Hz
Applicable Boiler: 2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Our Light oil burner is suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used!
Technical Parameters | |||||
Model | BYL130P | BYL160P | BYL210P | BYL260P | |
Output Power | Kw | 400-1300 | 500-1600 | 800-2100 | 950-2600 |
Control Mode | two stage flame | ||||
Fuel Consumption | Kg/h | 33.7-109.6 | 42.2-134.9 | 67.5-177.1 | 80.4-220 |
Motor Power | kw | 2.2 | 2.2 | 3 | 5.5 |
Applicable power supply | AC 400v 50Hz | ||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T | 1.5 | 2 | 2.5 | 3 |
Dimension | mm | 1070*800*700 | 1070*800*700 | 1070*800*700 | 1070*870*720 |
Weight | Kg | 95 | 95 | 95 | 105 |
