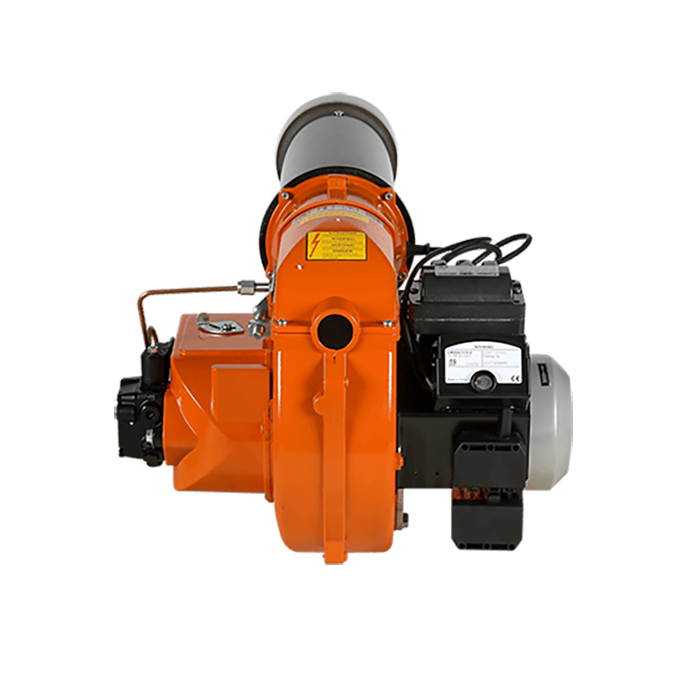

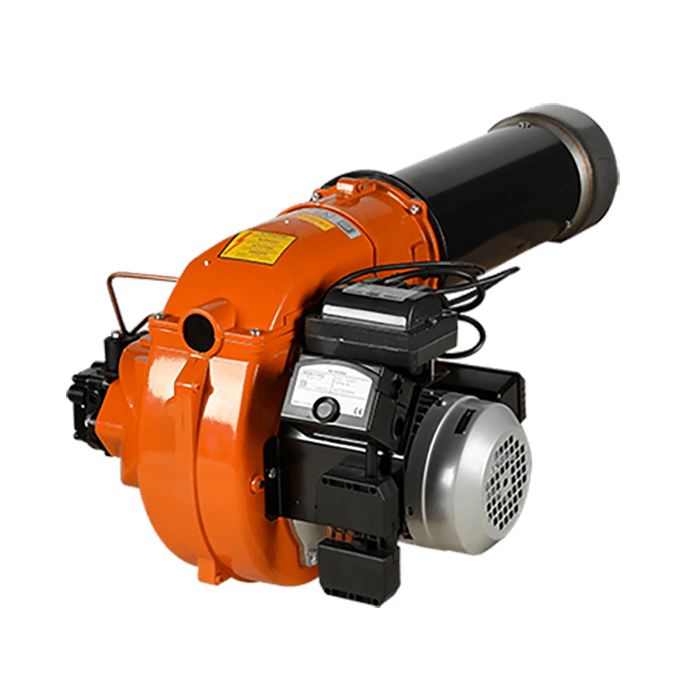

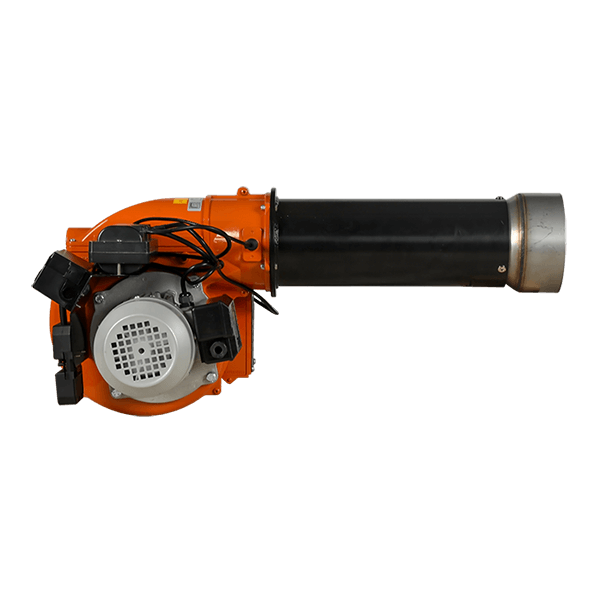

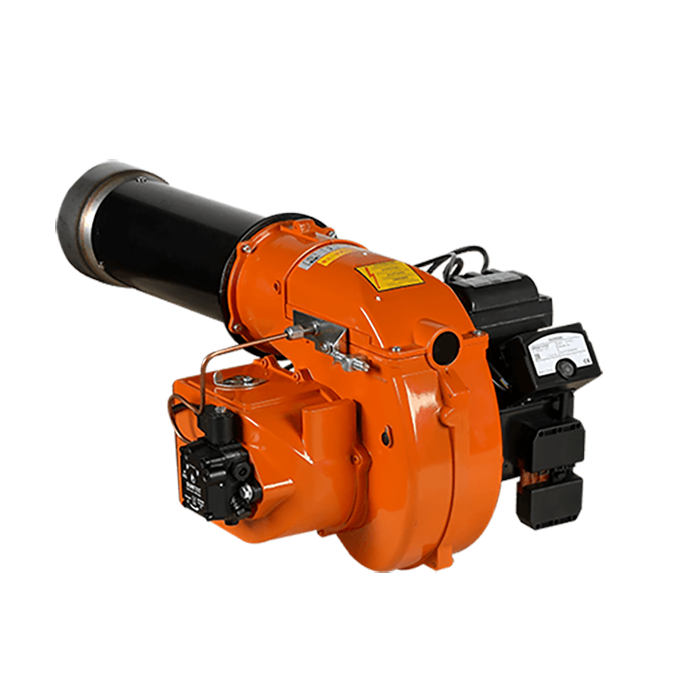

BYL18(BTL) diesel burner ,light oil burner boiler spare parts one stage/two stage fire oven use
Model: BYL18
Brand: Baiyan
Fuel: light oil,diesel
Output Power: 120-280kw
Control Mode: single stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms: Sea/Air/Land
Delivery Port: Ningbo Port
Application scenarios:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Technical Parameters | ||||||||
Model | BYL14 | BYL14P | BYL18 | BYL26 | BYL26P | BYL35 | BYL35P | |
Output Power | Kw | 83-166 | 120-280 | 190-310 | 178-391 | |||
Control Mode | single stage | two stage | single stage | single stage | two stage | single stage | two stage | |
Fuel Consumption | Kg/h | 7--14 | 10--24 | 16-26.1 | 15-33 | |||
Motor Power | kw | 0.18 | 0.37 | 0.37 | 0.37 | |||
Applicable power supply | AC 230v 50Hz | AC 230v 50Hz | ||||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||||||
NOx | ＜80 | |||||||
Applicable boiler | T | 0.1 | 0.4 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 |
Dimension | mm | 480*430*335 | 480*430*335 | 650*520*385 | 815*515*385 | |||
Weight | Kg | 14.04 | 15 | 23.96 | 24 | 26 | 25.4 | 28 |
Features:
1. Diesel burner. single stage operation
2. Adjust the combustion air and air supply pipe.
3. Combustion intake with throttle valve. Manually adjust the air volume.
4. Completely close the damper when shutting down to avoid heat loss through the chimney.
5. The sliding boiler connection flange makes the blast pipe suitable for various types of boilers.
6. The device made of sound-absorbing material reduces fan noise.
7.7 pole socket for burner power and thermostat power
8.Gear pump oil supply circuit with pressure regulation and cut-off valve
