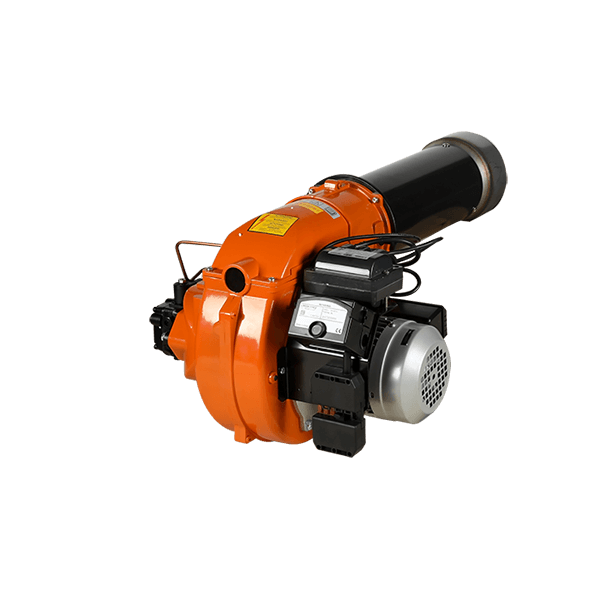

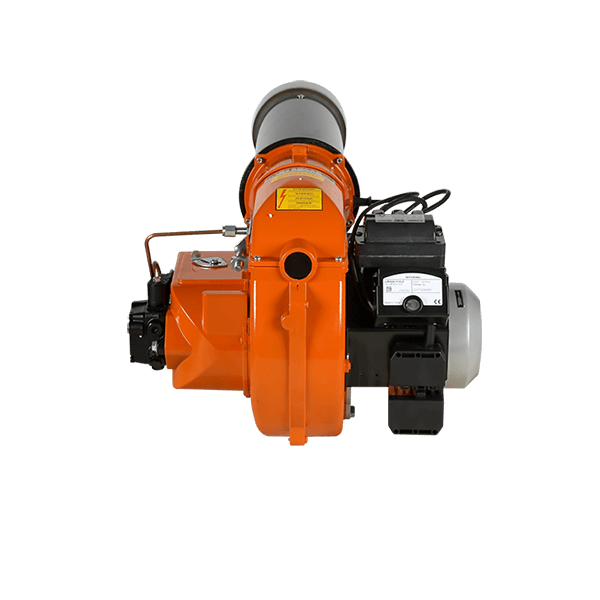

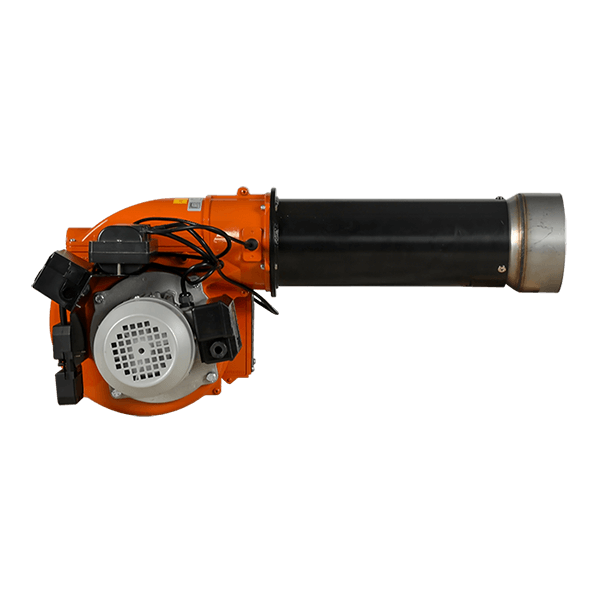

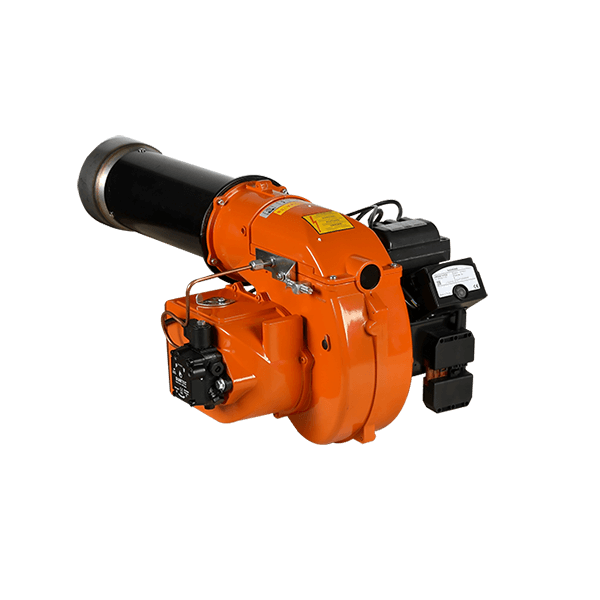

BYL26 Light Oil Burner Industrial Boiler Burner boiler part

    BYL26 light oil burner is a heating device which burns heating oils, diesel fuel or other similar fuels

    Model: BYL26

    Brand: Baiyan

    Fuel: light oil

    Output Power: 190-310kw

    Control Mode: single stage

    Applicable Power Supply: AC 230v 50Hz

    Applicable Boiler: 0.2T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Application scenarios:

    All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.

Features:

1. Diesel burner. single stage operation

2. Adjust the combustion air and air supply pipe.

3. Combustion intake with throttle valve. Manually adjust the air volume.

4. Completely close the damper when shutting down to avoid heat loss through the chimney.

5. The sliding boiler connection flange makes the blast pipe suitable for various types of boilers.

6. The device made of sound-absorbing material reduces fan noise.

7.7 pole socket for burner power and thermostat power

8.Gear pump oil supply circuit with pressure regulation and cut-off valve


Technical Parameters

Model

BYL14

BYL14P

BYL26

BYL26P

BYL35

BYL35P

Output Power

Kw

83-166

190-310

178-391

Control Mode

single stage

two stage

single stage

two stage

single stage

two stage

Fuel Consumption

Kg/h

7--14

16-26.1

15-33

Motor Power

kw

0.18

0.25

0.37

Applicable power supply

AC 230v 50Hz

AC 230v 50Hz

Safety Protection Level

IP 40 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T

0.1

0.4

0.2

0.3

0.3

0.4

Dimension

mm

475*455*340

650*520*385

940*490*390

Weight

Kg

18

18

32
