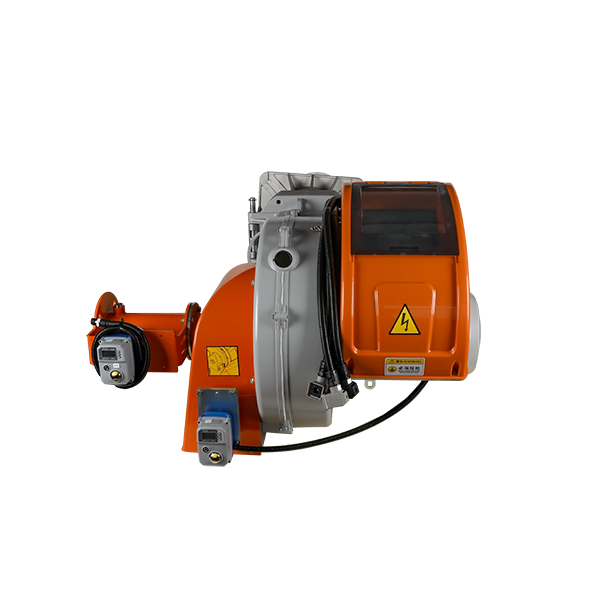

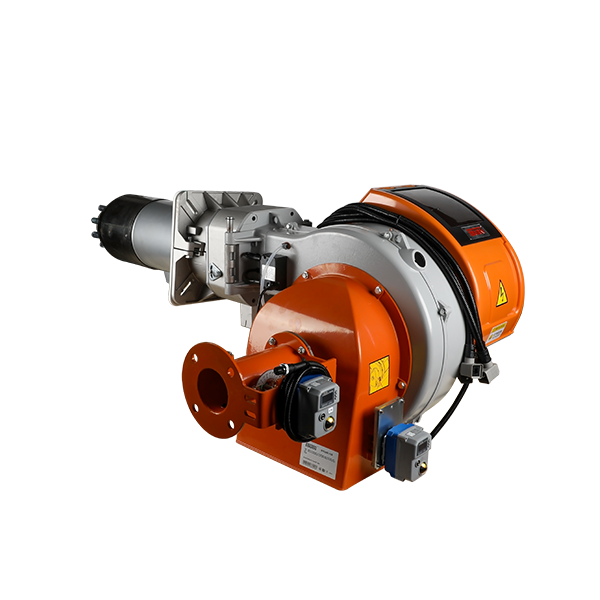

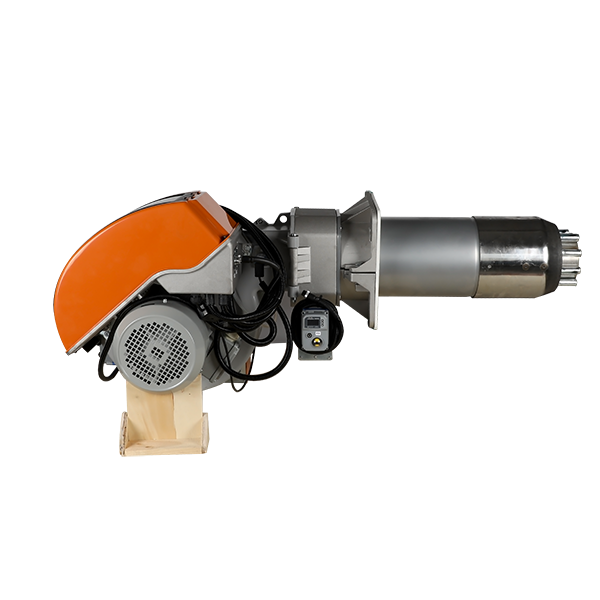

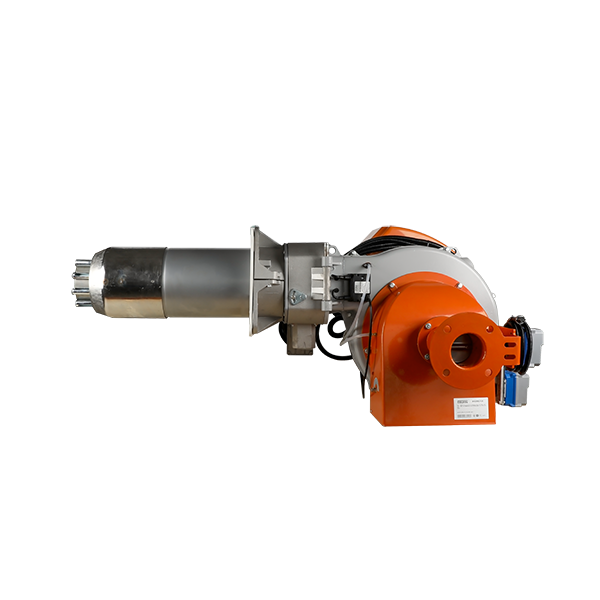

BYG200EFGR Industrial Boiler Burner Low Nox burner Gas Burner
Low NOx burners are designed to control fuel and air mixing at each burner in order to create larger and more branched flames.
Model: BYG200EFGR
Brand: Baiyan
Fuel: Natural Gas
Output Power: 690-2200kw
Control Mode: Progressive/modulating
Applicable Power Supply: AC 380v 50Hz
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Technical Parameters | ||||||
Model | BY-QEF0.8FGR | BY-QEF0.96FGR | BYG200E-FGR | BYQEF2.5FGR | BYQEF4.2FGR | |
Fuel | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas | |
Control Mode | Progressive/modulating | Progressive/modulating | ||||
Output Power | Kw | 240-960 | 240-960 | 690-2200 | 940-2800 | 1800-5200 |
Motor Power | kw | 1.1 | 3 | 7.5 | 9 | 18.5 |
Applicable power supply | AC 380v 50Hz | AC 380v 50Hz | ||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | |
Dimension | mm | 1000*1010*755 | 1000*1010*755 | 1070*800*700 | 1070*870*720 | 2080*1310*1140 |
Weight | Kg | 86 | 95 | 115 | 126 | 302 |
