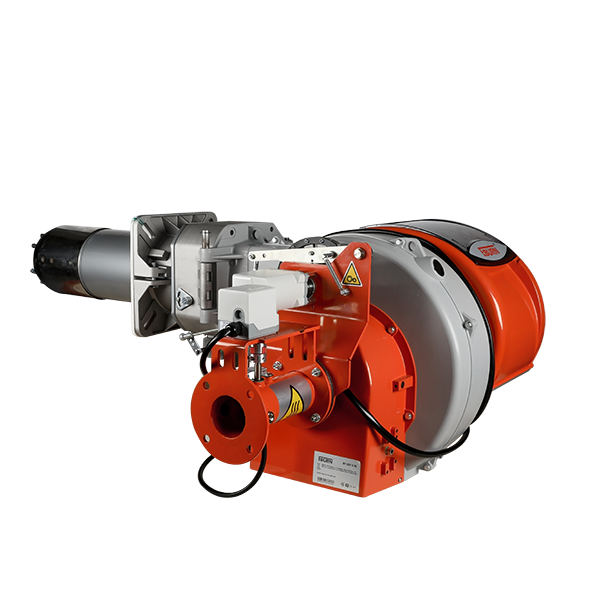

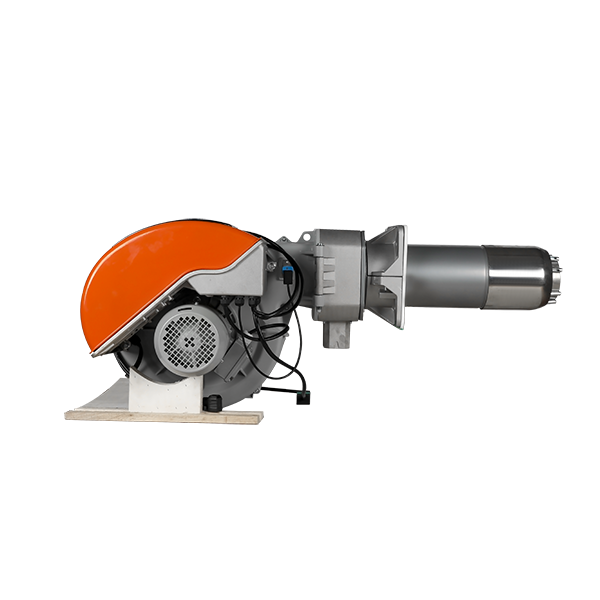

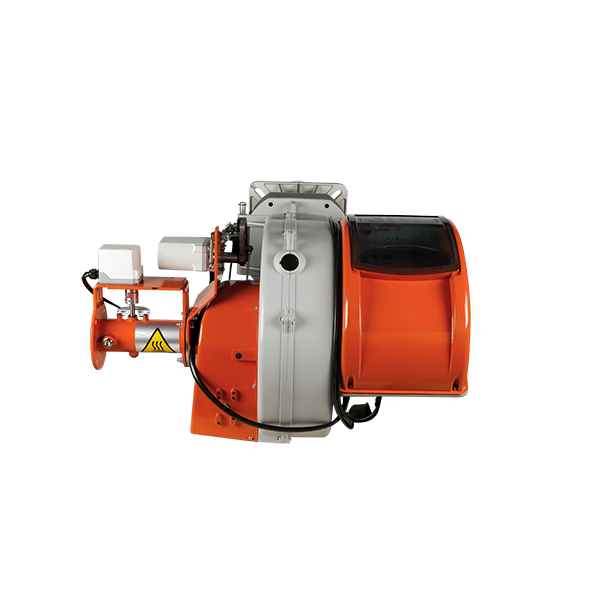

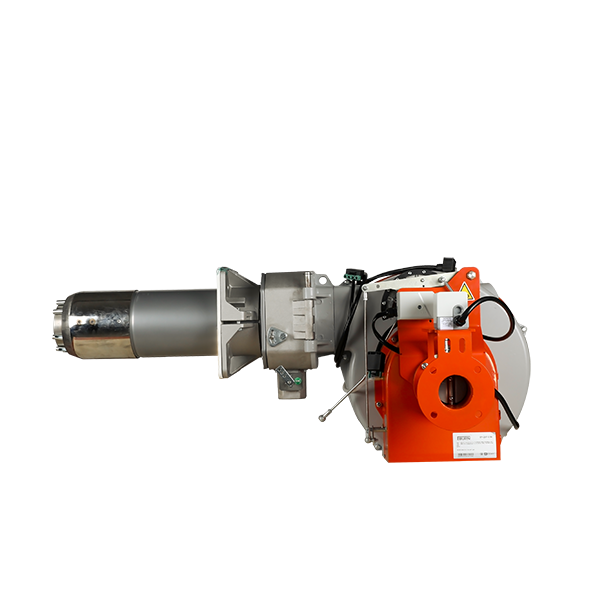

BYQEF0.8FGR Gas Burner Industrial Boiler Burner Low Nox
Boiler and burner technology uses heat to produce hot water and/or steam. In the combustion process, nitrous oxide (NOx) and nitrogen dioxide are produced as byproducts. These pollutants can initiate harmful reactions, which result in the production of acid rain and ozone.
Model: BYQEF0.8FGR
Brand: Baiyan
Fuel: Gas
Output Power: 240-960kw
Control Mode: Progressive/modulating
Applicable Power Supply: AC 380v 50Hz
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Technical Parameters | ||||||
Model | BY-QEF0.8FGR | BY-QEF0.96FGR | BYG200E-FGR | BYQEF2.5FGR | BYQEF4.2FGR | |
Fuel | Natural Gas | Natural Gas | Natural Gas | Natural Gas | Natural Gas | |
Control Mode | Progressive/modulating | Progressive/modulating | ||||
Output Power | Kw | 240-960 | 240-960 | 690-2200 | 940-2800 | 1800-5200 |
Motor Power | kw | 1.1 | 3 | 7.5 | 9 | 18.5 |
Applicable power supply | AC 380v 50Hz | AC 380v 50Hz | ||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜30 | ＜30 | ＜30 | ＜30 | ＜30 | |
Dimension | mm | 1000*1010*755 | 1000*1010*755 | 1070*800*700 | 1070*870*720 | 2080*1310*1140 |
Weight | Kg | 86 | 95 | 115 | 126 | 302 |
