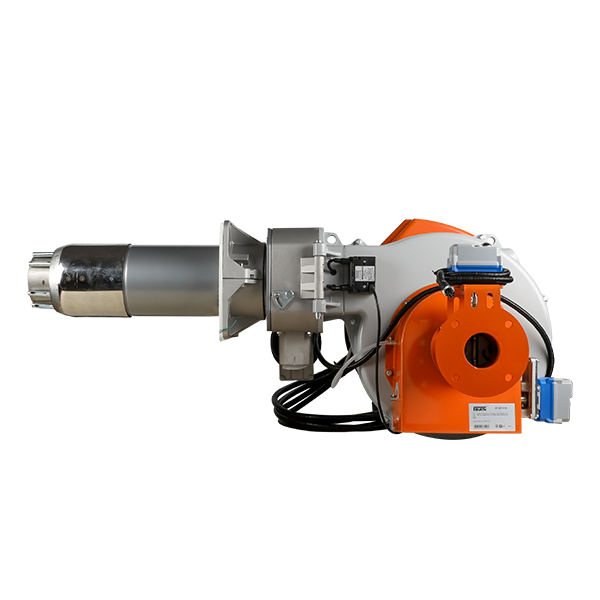

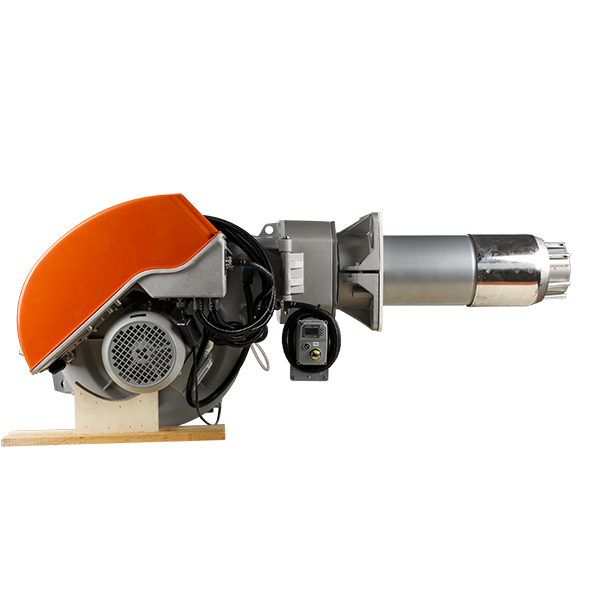

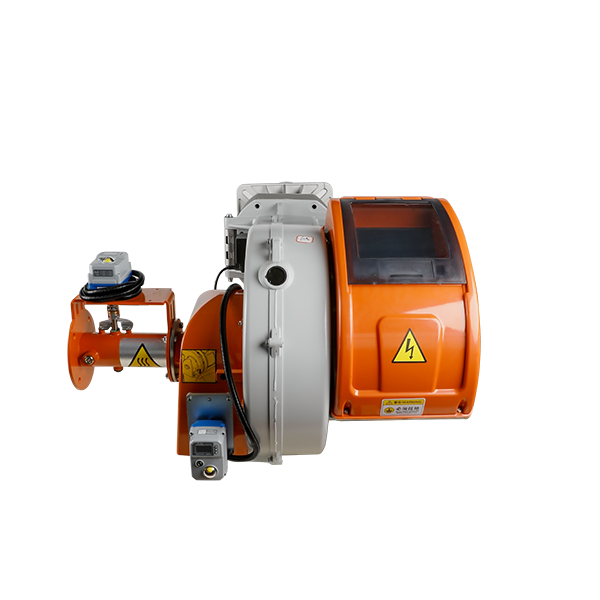

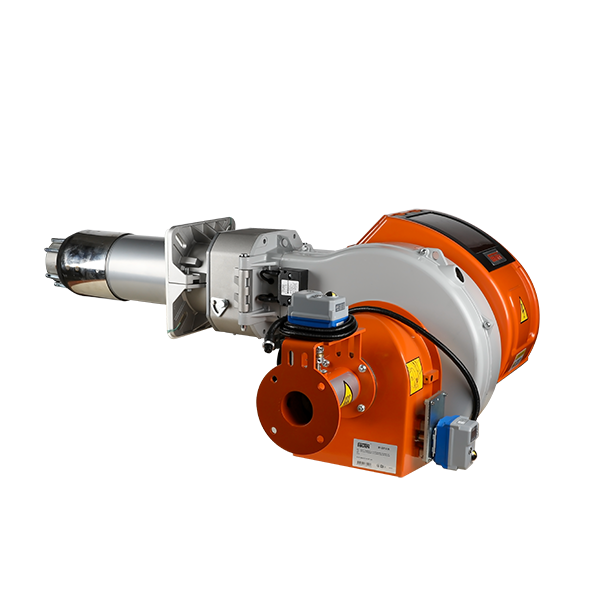

BYQEF0.96FGR Gas Burner Industrial burner Boiler Burner Low Nox
Boiler and burner technology uses heat to produce hot water and/or steam. In the combustion process, nitrous oxide (NOx) and nitrogen dioxide are produced as byproducts. These pollutants can initiate harmful reactions, which result in the production of acid rain and ozone.
Model: BYQEF0.96FGR
Brand: Baiyan
Fuel: Gas
Output Power: 240-960kw
Control Mode: Progressive/modulating
Applicable Power Supply: AC 380v 50Hz
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications:
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Technical Parameters | |||||
Model | BYL45P | BYL60P | BYL85P | BYL105P | |
Output Power | Kw | 160-450 | 250-600 | 200-850 | 320-1050 |
Control Mode | two stage flame | ||||
Fuel Consumption | Kg/h | 13-38 | 21-50.6 | 16.9-71.6 | 27-88.5 |
Motor Power | kw | 0.5 | 0.65 | 1.1 | 1.5 |
Applicable power supply | AC 220v 50Hz | AC 400v 50Hz | AC 380v 50Hz | ||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T | 0.5 | 0.7 | 1 | 1.2 |
Dimension | mm | 1000*600*510 | 1000*600*510 | 1070*800*700 | 1070*800*700 |
Weight | Kg | 34 | 36 | 79 | 80 |
