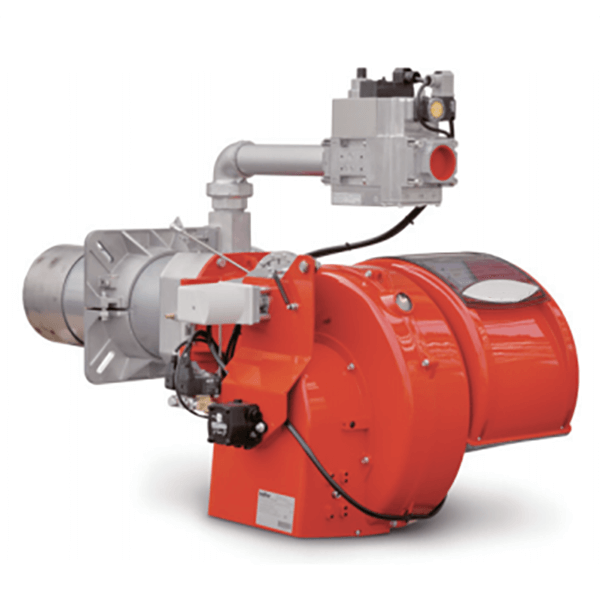

BYML200MC two side progressive burner Italy type industrial burner
Model: BYML200MC
Brand: Baiyan
Fuel: gas and oil
Output Power: 450-2000kw
Control Mode: Mechanical Modulation,gas side progressive two-stage operation, diesel side two-stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Gas and oil burners for stationary boilers are used for burning gas and oil, as well as for complete combustion of the fuel (combined with the furnace) by creating a homogeneous fuel-air mixture.
Technical Parameters | |||||
Model | BYML160MC | BYML200MC | BYML260MC | BYML360MC | |
Fuel | Natural Gas | Natural Gas | Natural Gas | Natural Gas | |
Control Mode | Mechanical Modulation,gas side progressive two-stage operation, diesel side two-stage | ||||
Output Power | Kw | 350-1600 | 450--2000 | 500--2600 | 700--3600 |
Flow rate | Sm³/H | 19--90 | 48--212 | 53--275 | 74--381 |
Second Fuel | Light oil | Light oil | Light oil | Light oil | |
Second Fuel Power | Kw | 350--850 | 700--2000 | 900--2600 | 1000--3600 |
Flow rate | Kg/h | 30--72 | 59--169 | 76--219 | 84--304 |
Motor Power | kw | 2.2±0.75 | 3±0.75 | 5.5±1.1 | 7.5±1.1 |
Applicable power supply | AC 400v 50Hz | ||||
Safety Protection Level | IP 54 （protection level can be improved according to different requirement) | IP40（protection level can be improved according to different requirement) | |||
NOx | ＜80 | ||||
Applicable boiler | T | 1.8 | 2 | 3 | 4 |
Dimension | mm | 1500*1000*720 | 1500*1000*720 | 1070*800*700 | 1070*980*810 |
Weight | Kg | 140 | 145 | 127 | 130 |
