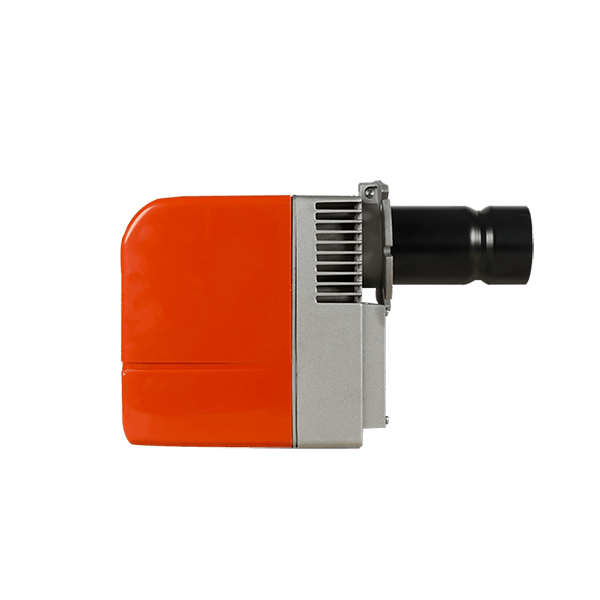

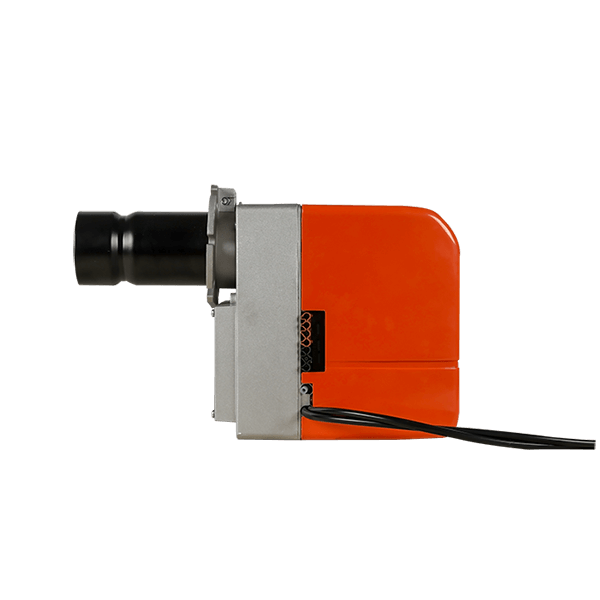

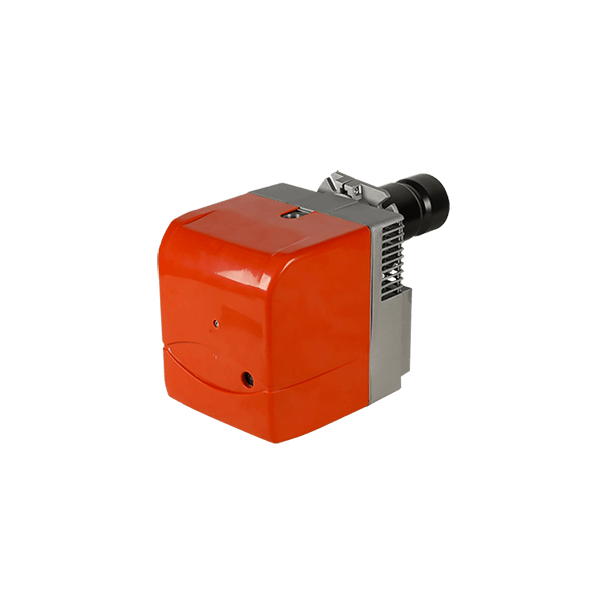

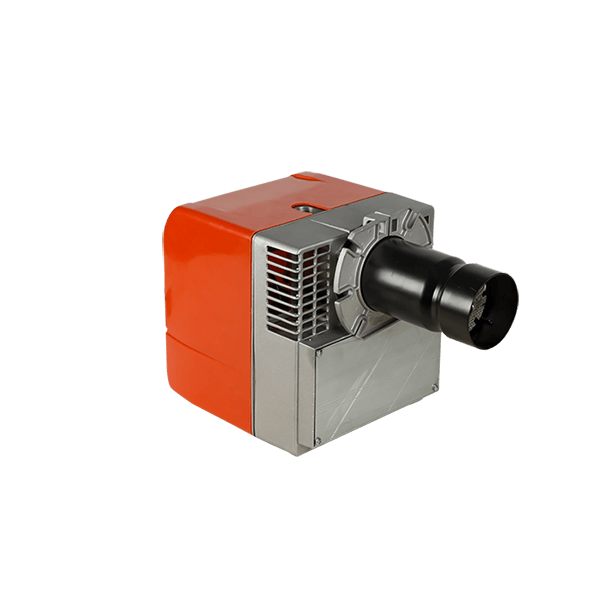

BY10 Single Stage Burner for Industrial Boiler
Single Stage LPG BY10 is able to achieve very low emissions. Nitrous oxide (NOx) emission reduction has been a focus for natural gas boiler burners, and some models are able to achieve sub-10 ppm NOx.
Model: BY10
Output Power: 30-115kw
Control Mode: single stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.1T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
Brand: Baiyan
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications of Single Stage Gas Burner BY10
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features of Single Stage LPG BY10
1.Single stage operation(on/off).
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Manual adjusting of the air flow rate.
4.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
5.Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
6.Possibility to choose gas train with valve tightness control..
7.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
8.Gas train exit: high.
9.Sound-proof plastic protective cover.
10.7-pole socket for burner electric and thermostatic supply
Technical Parameters | ||||||
Model | BY10 | BY20 | BY28 | BY35 | BY35P | |
Output Power | Kw | 30-115 | 60-205 | 100-280 | 80-410 | 80-410 |
Control Mode | single stage operation | two stage | ||||
Gas Consumption | Sm³/H | 3.8-11.5 | 6-20.5 | 10--28 | 8-41 | 8-43 |
Motor Power | kw | 0.1 | 0.18 | 0.18 | 0.37 | 0.37 |
Applicable power supply | AC 230v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||||
NOx | ＜80 | |||||
Applicable boiler | T/h | 0.1 | 0.2 | 0.3 | 0.4 | 0.4 |
Kw | 69 | 138 | 207 | 276 | 276 | |
103*kcal/h | 60 | 120 | 180 | 240 | 240 | |
Static Pressure | Kpa | 3 | 3 | 5 | 5 | 4 |
Dynamic Pressure | 2 | 2 | 3 | 3 | 3 | |
Dimension | mm | 560*310*350 | 780*370*410 | 780*370*410 | 1030*510*410 | 1030*510*410 |
Weight | Kg | 12 | 18 | 18 | 38 | 38 |
