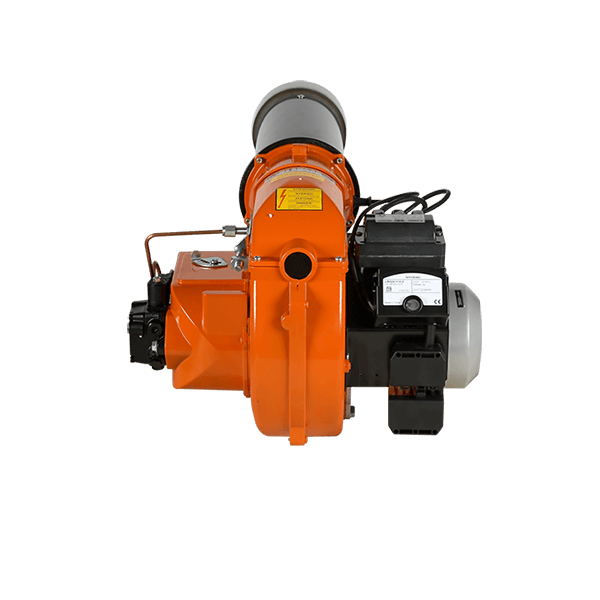

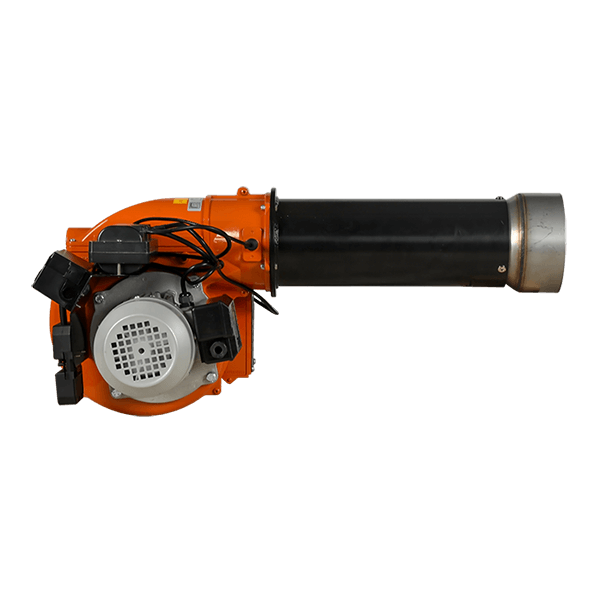

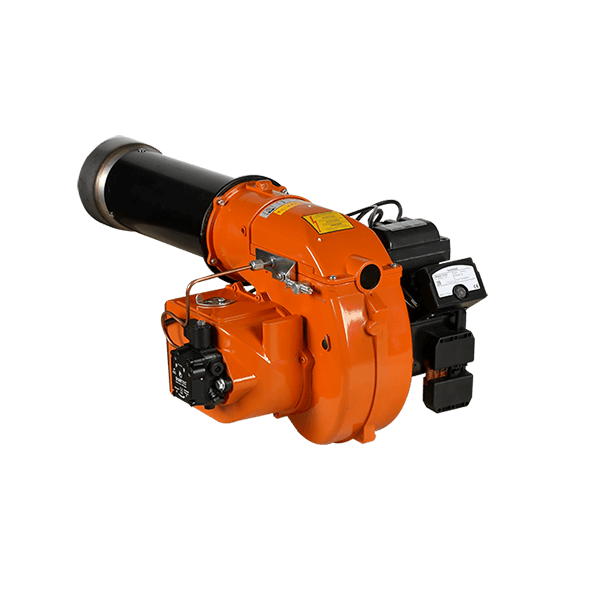

BY28 LPG burner industrial burner for boiler hot sale single stage
BY28 LPG boiler burnercan supply and serve the combustion Industry. Engineered combustion systems for any industrial application.
Model: BY28
Output Power: 100-280kw
Control Mode: single stage
Applicable Power Supply: AC 230v 50Hz
Applicable Boiler: 0.3T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
Brand: Baiyan
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications of Single Stage Gas Burner BY28
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features of Single Stage LPG BY28
1.Single stage operation(on/off).
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Manual adjusting of the air flow rate.
4.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
5.Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
6.Possibility to choose gas train with valve tightness control..
7.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
8.Gas train exit: high.
9.Sound-proof plastic protective cover.
10.7-pole socket for burner electric and thermostatic supply.
Technical Parameters | ||||||
Model | BY10 | BY20 | BY28 | BY35 | BY35P | |
Output Power | Kw | 30-115 | 60-205 | 100-280 | 80-410 | 80-410 |
Control Mode | single stage operation | two stage | ||||
Gas Consumption | Sm³/H | 3.8-11.5 | 6-20.5 | 10--28 | 8-41 | 8-43 |
Motor Power | kw | 0.1 | 0.18 | 0.18 | 0.37 | 0.37 |
Applicable power supply | AC 230v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||||
NOx | ＜80 | |||||
Applicable boiler | T/h | 0.1 | 0.2 | 0.3 | 0.4 | 0.4 |
Kw | 69 | 138 | 207 | 276 | 276 | |
103*kcal/h | 60 | 120 | 180 | 240 | 240 | |
Static Pressure | Kpa | 3 | 3 | 5 | 5 | 4 |
Dynamic Pressure | 2 | 2 | 3 | 3 | 3 | |
Dimension | mm | 560*310*350 | 780*370*410 | 780*370*410 | 1030*510*410 | 1030*510*410 |
Weight | Kg | 12 | 18 | 18 | 38 | 38 |
