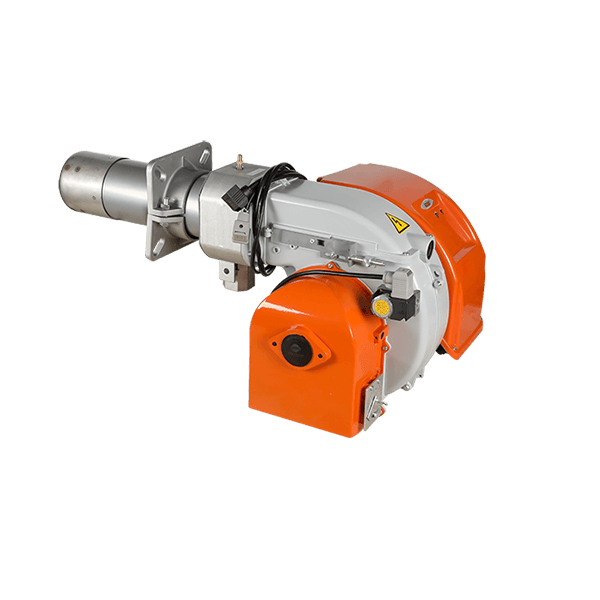

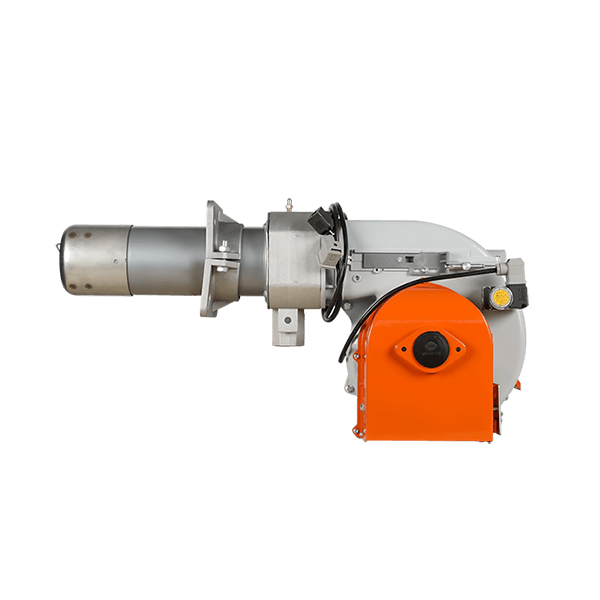

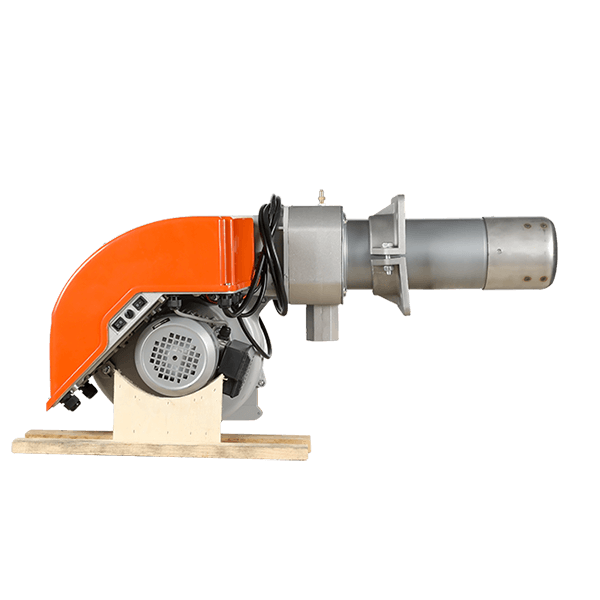

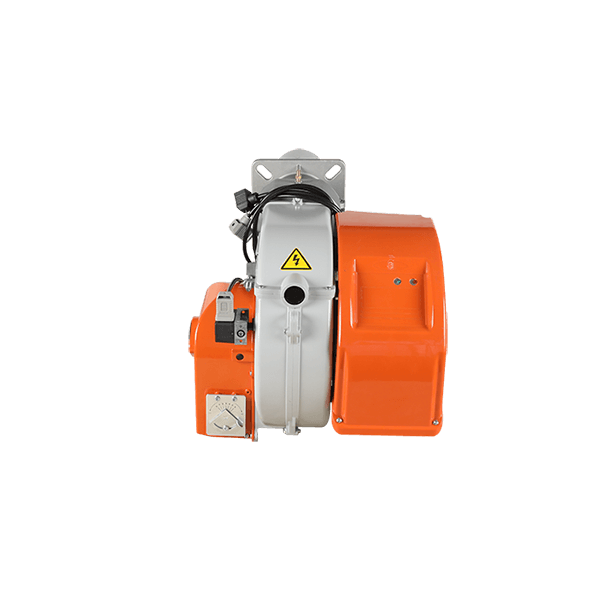

BY45 industrial burner hot sale LPG industrial burner boiler part

    BY45 LPG burner is a device that produces a controlled flame by mixing a fuel gas such as acetylene, natural gas, or propane with an oxidizer such as the ambient air or supplied oxygen, and allowing for ignition and combustion

    Model:    BY45

    Output Power :  100-450kw

    Control Mode:    single stage

    Applicable Power Supply:   AC 230v 50Hz

    Applicable Boiler:   0.5T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    Brand: Baiyan

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port


    Applications:

    All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.


Features:

  • 1.Single-stage operation

  • 2.Combustion air intake with throttle damper. Manual adjusting of the air flow rate.

  • 3.Gas train exit: high/low.

  • 4.7-pole socket for burner electric and thermostatic supply.

  • 5.Gas burner compliant with European standard EN676. Single-stage operation.

  • 6.Regulating combustion air and blast-pipe.

  • 7.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.

  • 8.CE version gas train is complete with operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter.

Technical    Parameters

Model

BY45

BY45P

BY60

BY60P

Output Power

Kw

100-450

100-450

120-600

120-600

Control Mode

 single stage flame

two stage flame

 single stage flame

two stage flame

Gasl Consumption

Sm³/H

10--45

10--50

12--60

12--60

Motor Power

kw

0.5

0.5

0.74

0.74

Applicable power supply

AC 230V 50Hz

AC 400v 50Hz

Safety Protection Level

IP 44 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T/h

0.5

0.5

0.6

0.6

Kw

345

345

414

414

103*kcal/h

300

300

360

360

Static Pressure

Kpa

4--5

4--5

5--6

5--6

Dynamic Pressure

3--4

3--4

4--5

4--5

Dimension

mm

1000*600*510

1000*600*510

1000*600*510

1000*600*510

Weight

Kg

40

40

42

42
