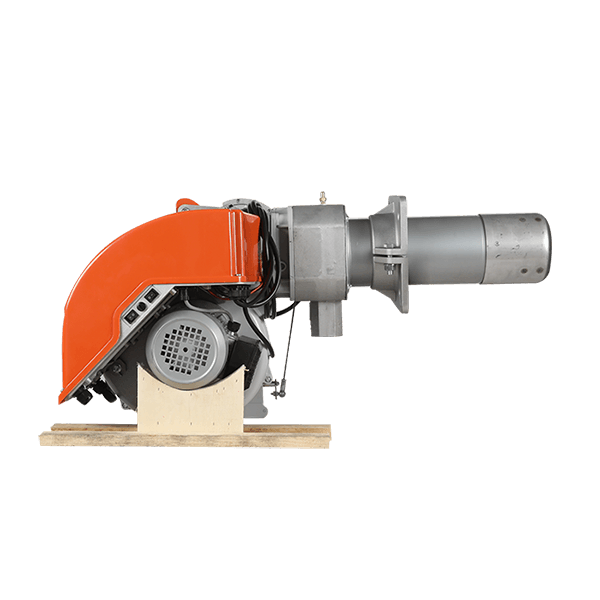

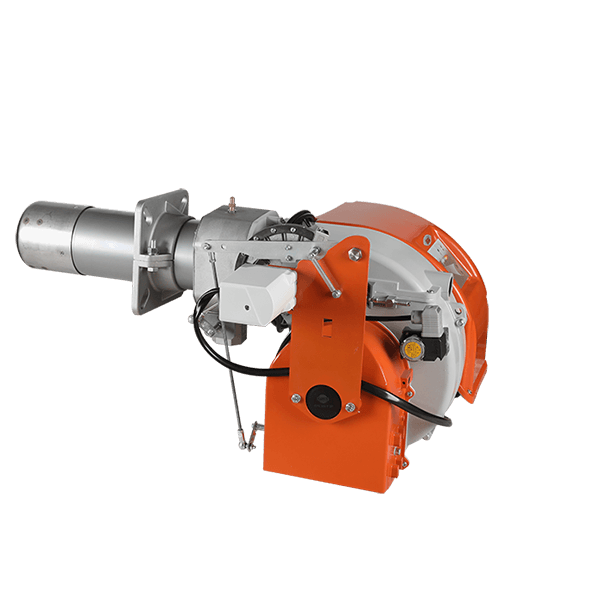

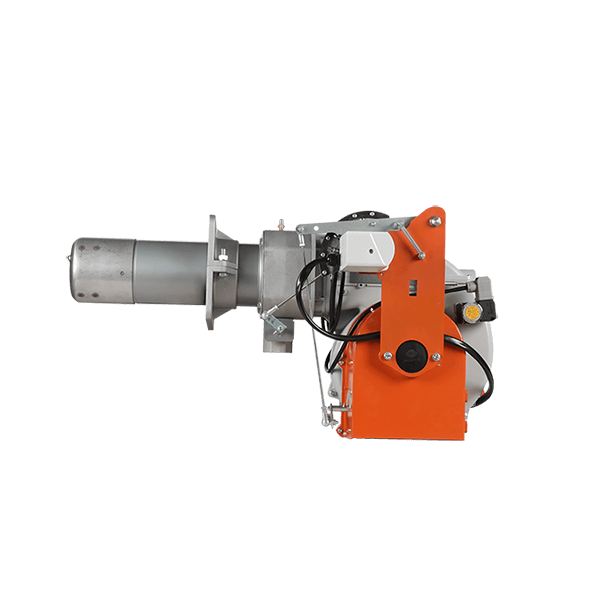

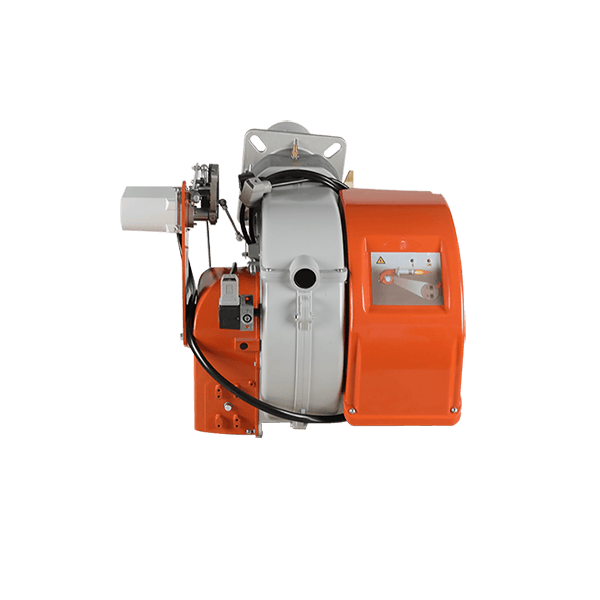

BY60P LPG industrial burner for boiler part two stage burner

    BY60P Industrial burners are an important component of boilers and furnace heating systems that provides temperature control throughout entire manufacturing facilities, as well as other heating processes during manufacturing.

    Model: BY60P

    Brand: Baiyan

    Fuel:LPG

    Output Power: 120-600kw

    Control Mode: two stage

    Applicable Power Supply: AC 400v 50Hz

    Applicable Boiler: 0.6T/H

    Certificate: ISO

    Packaging Details:Neutral/Customized packaging

    MOQ: 1pcs

    Delivery terms: Sea/Air/Land

    Delivery Port: Ningbo Port

    Applications: All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers

Features:

1.Two-stage operation

2.Regulating combustion air and blast-pipe.

3.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.

4.Gas train exit: high/low.

5.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.

6.Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.

7.Possibility to choose gas train with valve tightness control.

8.7-pole socket for burner electric and thermostatic supply

9.Fully closing air damper on shutdown to avoid loss of heat through the chimney.

10.4-pole socket for second stage control

Technical Parameters

Model

BY45

BY45P

BY60

BY60P

Output Power

Kw

100-450

100-450

120-600

120-600

Control Mode

 single stage flame

two stage flame

 single stage flame

two stage flame

Gasl Consumption

Sm³/H

10--45

10--50

12--60

12--60

Motor Power

kw

0.5

0.5

0.74

0.74

Applicable power supply

AC 230V 50Hz

AC 400v 50Hz

Safety Protection Level

IP 44 protection level can be improved according to different requirement)

NOx

80

Applicable boiler

T/h

0.5

0.5

0.6

0.6

Kw

345

345

414

414

103*kcal/h

300

300

360

360

Static Pressure

Kpa

4--5

4--5

5--6

5--6

Dynamic Pressure

3--4

3--4

4--5

4--5

Dimension

mm

1000*600*510

1000*600*510

1000*600*510

1000*600*510

Weight

Kg

40

40

42

42
