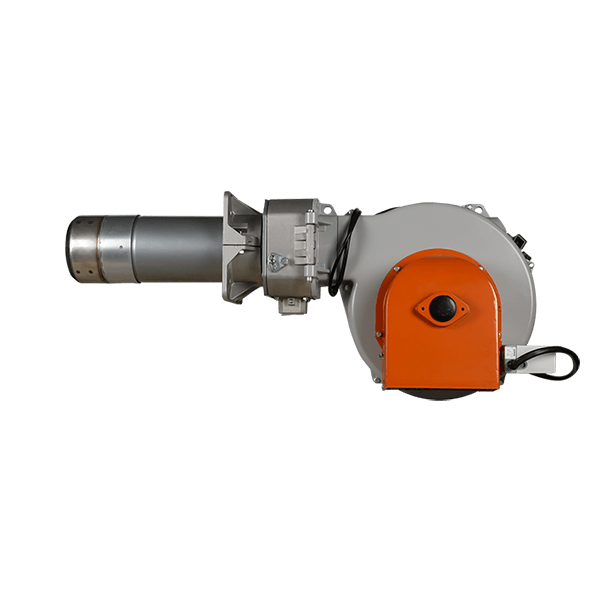

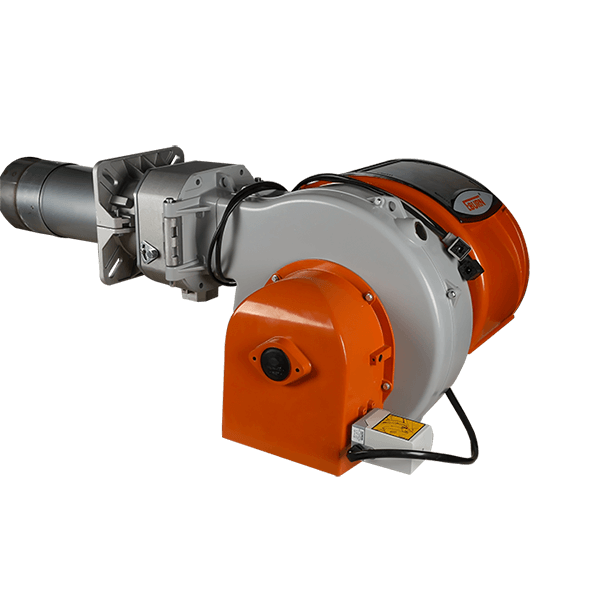

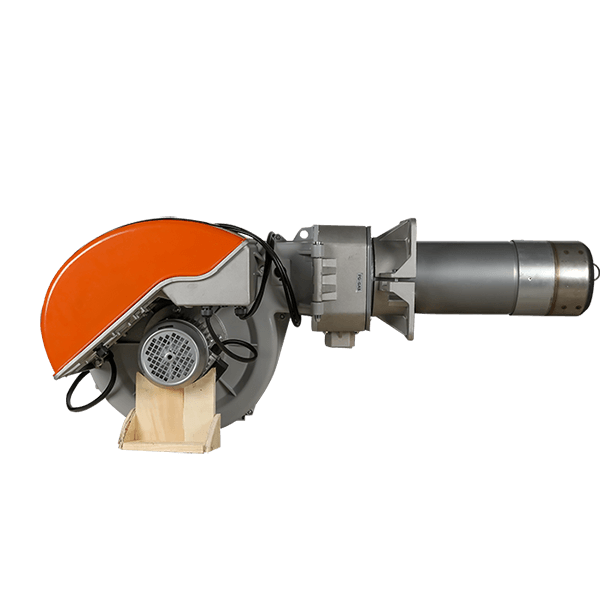

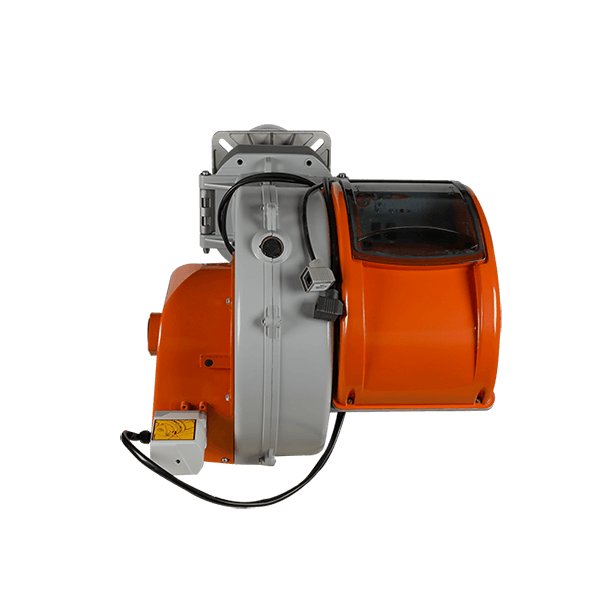

BY85P LPG burner two stage industrial burner boiler burner
BY85P LPG burner of two stage is a mechanical device using an ignition to mix fuel and air together to provide a platform for combustion.
Model: BY85P
Brand: Baiyan
Fuel: LPG
Output Power: 170-850kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 0.8-1T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications: boilers, furnaces, heaters, kilns, ovens, dryers, etc
Features:
1.Two-stage operation.
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
4.Gas train exit: high/low..
5.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
6.Control panel with display diagram for working mode with indication lights .
7.Electric control board in light alluminum alloy with IP55 protection rating
8.7-pole socket for burner electric and thermostatic supply
9.4-pole socket for second stage control
10.Electric control board in light alluminum alloy with IP55 protection rating
Technical Parameters | ||||
Model | BY85P | BY80LXP | BY85MC | |
Output Power | Kw | 170-850 | 130-800 | 170-850 |
Control Mode | two stage flame | sliding two stage/modulation | ||
Gas Consumption | Sm³/H | 18-90 | 13--80 | 18-90 |
Motor Power | kw | 1.1 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 0.8-1 | ||
Kw | 552-690 | |||
103*kcal/h | 480-590 | |||
Static Pressure | Kpa | 6--10 | 6--10 | 6--10 |
Dynamic Pressure | 6--8 | 6--8 | 6--8 | |
Dimension | mm | 1070*800*700 | ||
Weight | Kg | 78 | ||
