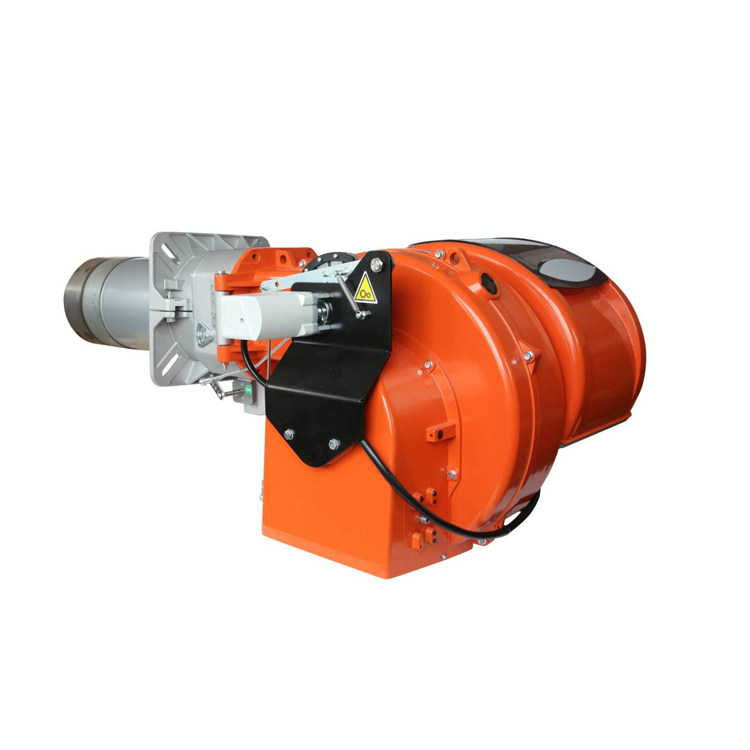

BY120MC gas Burner Operational Efficiency Modular Burner Systems High-Intensity Burner 240kw-1200kw
BY120MC burner provides the heat necessary for converting water in the boiler into steam and is attached to the boiler.
Model: BY120MC
Brand: Baiyan
Fuel: Natural Gas,LPG
Output Power: 240-1220kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 1.1-1.4T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms: Sea/Air/Land
Delivery Port: Ningbo Port
Applications: All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Technical Parameters | ||||
Model | BY120P | BY110LXP | BY120MC | |
Output Power | Kw | 240-1200 | 180-1200 | 240-1200 |
Control Mode | two stage flame | slide two stage flame | slide two stage flame | |
Gas Consumption | Sm³/H | 24--120 | 18-120 | 24--120 |
Motor Power | kw | 1.5 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 54 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 1.1-1.4 | ||
Kw | 759-966 | |||
103*kcal/h | 650-830 | |||
Static Pressure | Kpa | 8--12 | 8--12 | 8--12 |
Dynamic Pressure | 8--10 | 8--10 | 8--10 | |
Dimension | mm | 1070*800*700 | ||
Weight | Kg | 87 | ||
