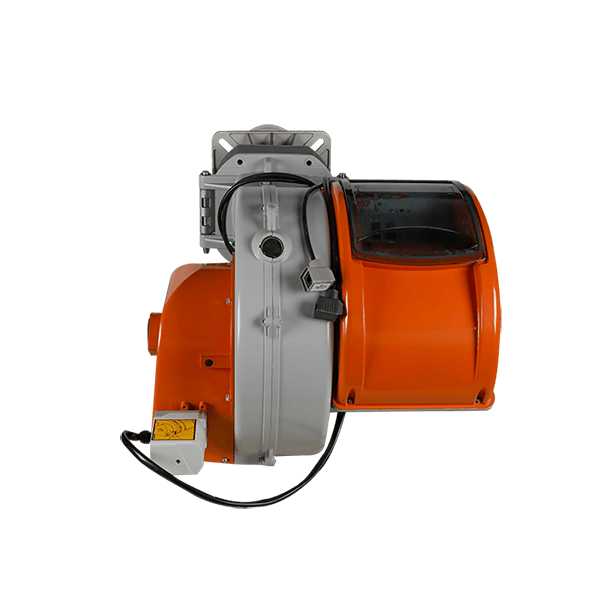

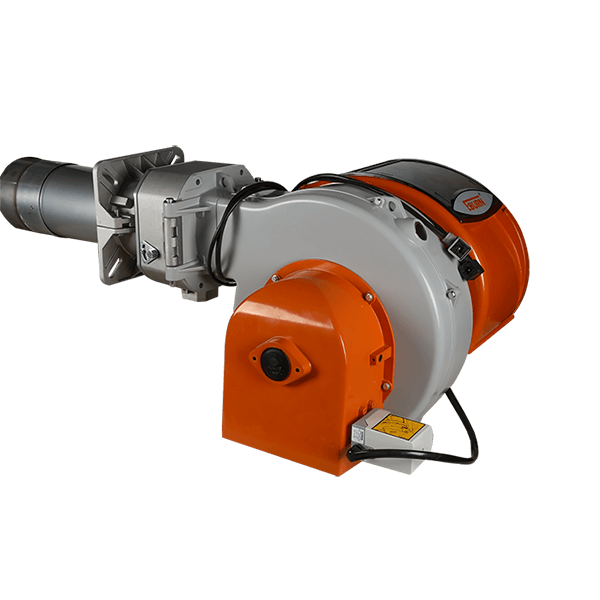

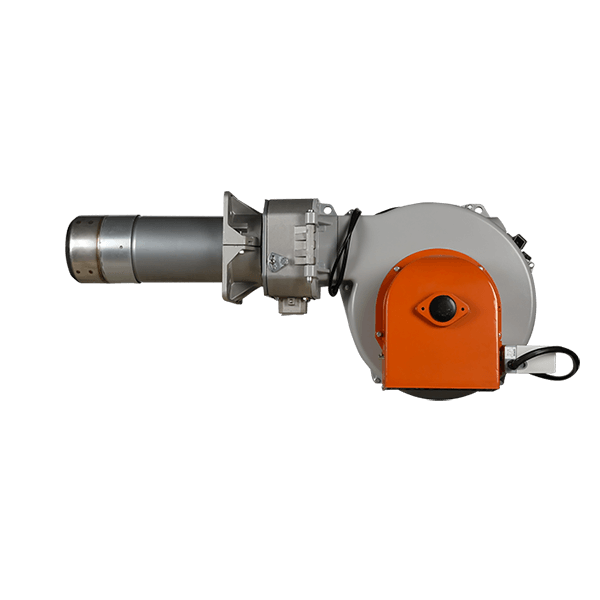

BY120P two stage industrial burner for boiler natural gas burner
BY120P burner provides the heat necessary for converting water in the boiler into steam and is attached to the boiler.
Model: BY120P
Brand: Baiyan
Fuel: Natural Gas
Output Power: 240-1220kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 0.8-1T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications: All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features:
1.Two-stage operation
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Air flow adjustment with mechanical cam.
4.Gas train exit: low.
5.Combustion air intake designed to achieve optimum linearity of the air gate opening.
6.Control panel with display diagram for working mode with indication lights .
7.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
8.7-pole socket for burner electric and thermostatic supply
9.4-pole socket for second stage control.
10.Electric control board in light alluminum alloy with IP55 protection rating
Technical Parameters | ||||
Model | BY120P | BY110LXP | BY120MC | |
Output Power | Kw | 240-1200 | 180-1200 | 240-1200 |
Control Mode | two stage flame | slide two stage flame | proportional control | |
Gas Consumption | Sm³/H | 24--120 | 18-120 | 24--120 |
Motor Power | kw | 1.5 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 54 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 1.1-1.4 | ||
Kw | 759-966 | |||
103*kcal/h | 650-830 | |||
Dimension | mm | 1070*800*700 | ||
Weight | Kg | 87 | ||
