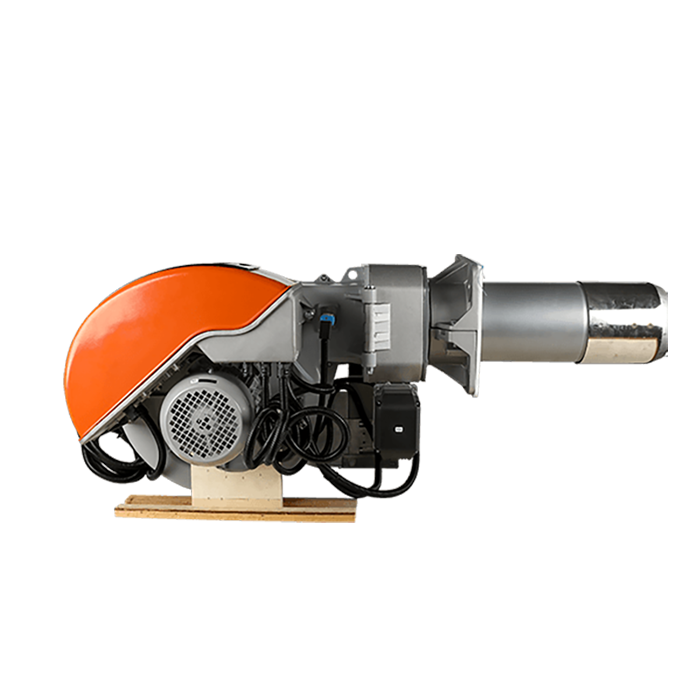

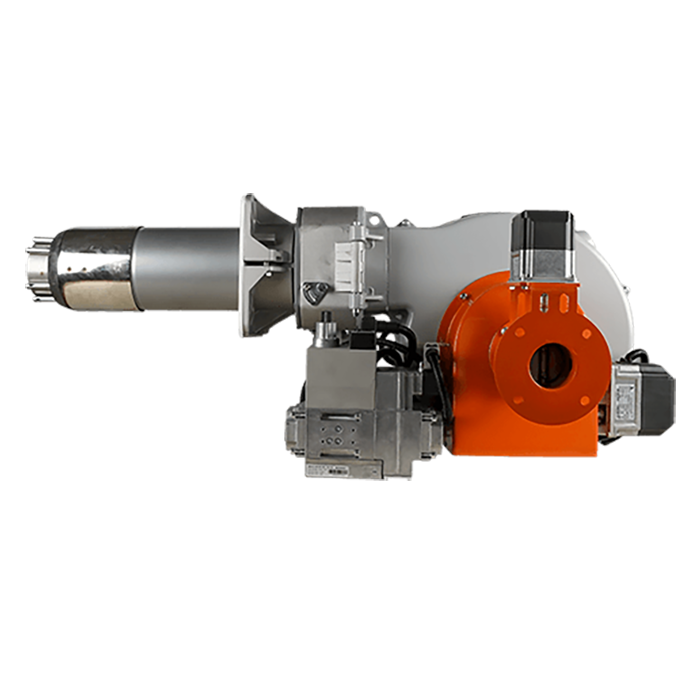

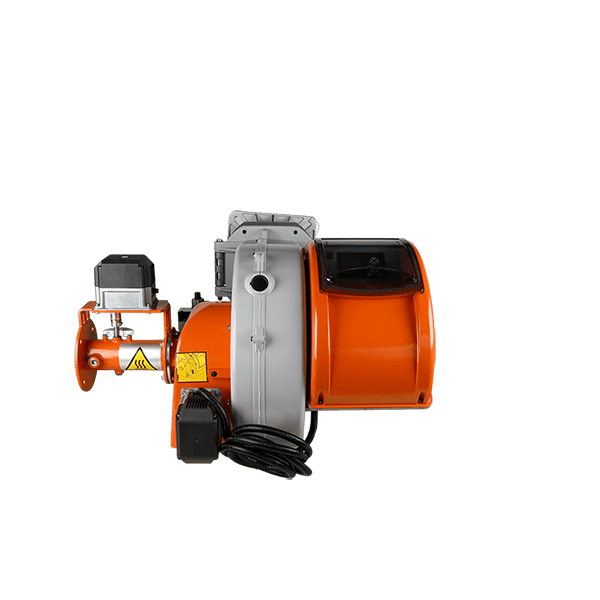

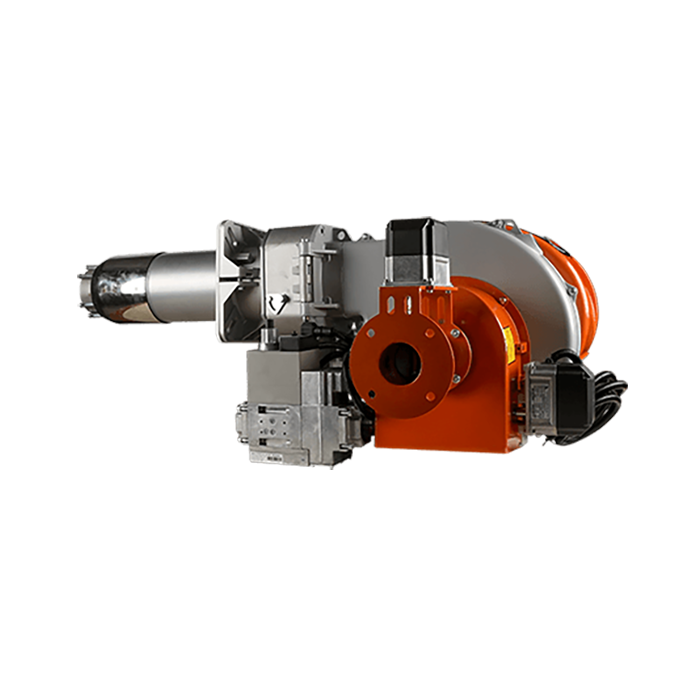

BY200LXP indsutrial burner Fully autometic controlled combustion technology burner low NOx with SEMENS combuston control system
BY200LXP industrial burners are used to promote controlled burning. By combining and igniting fuel and air/gas, the calories they provide help to achieve and maintain a specific temperature in the burning room, depending on the level required for a specific process.
Model: BY200LXP
Brand: Baiyan
Fuel: LPG,natural gas
Output Power: 470-1900kw
Control Mode: two progressive stage,sliding 2 stages
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms: Sea/Air/Land
Delivery Port: Ningbo Port
Applications of BY200LXP
All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features:
1.Pneumatic operation at two progressive stages.
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
4.Gas train exit:high/low.
5.Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).
6.Control panel with display diagram for working mode with indication lights .
7.Electric control board in light alluminum alloy with IP55 protection rating
8.7-pole socket for burner electric and thermostatic supply
9.4-pole socket for second stage control or for the connection of the PID electronic regulator.
10.Electric control board in light alluminum alloy with IP55 protection rating
11.Modulation ratio 1:6.
Technical Parameters | ||||
Model | BY210P | BY200LXP | BY210MC | |
Output Power | Kw | 400-2100 | 475-1900 | 400-2100 |
Control Mode | two stage flame | slide two stage flame | proportional control | |
Gas Consumption | Sm³/H | 40-210 | 47.5-190 | 40-210 |
Motor Power | kw | 3 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 2 | ||
Kw | 1382 | |||
103*kcal/h | 1190 | |||
Static Pressure | Kpa | 10--12 | 10--12 | 10--12 |
Dynamic Pressure | 10--12 | 10--12 | 10--12 | |
Dimension | mm | 1050*820*700 | ||
Weight | Kg | 85 | 85 | 85 |
