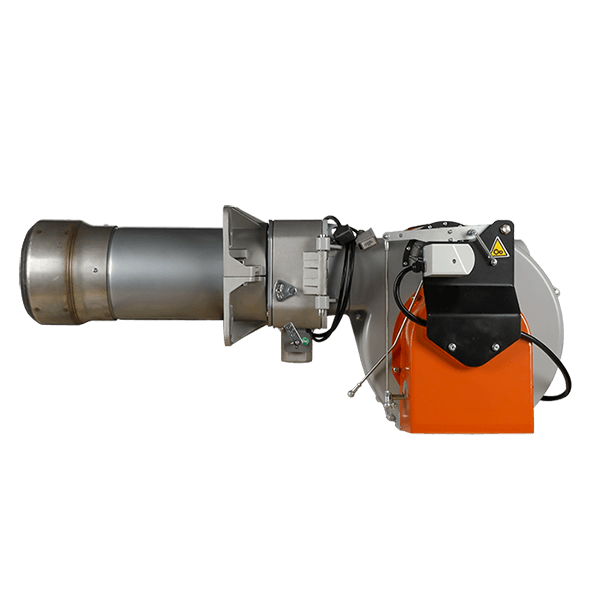

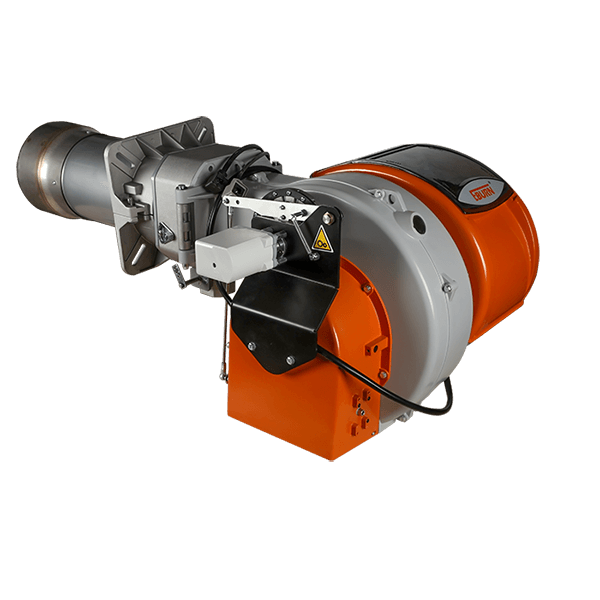

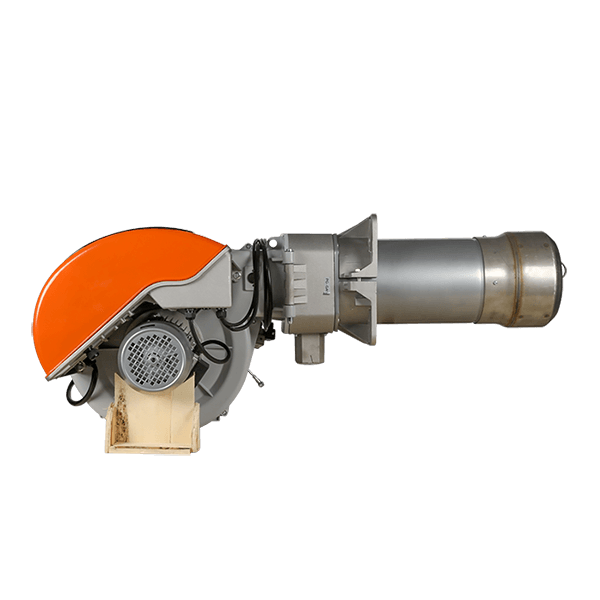

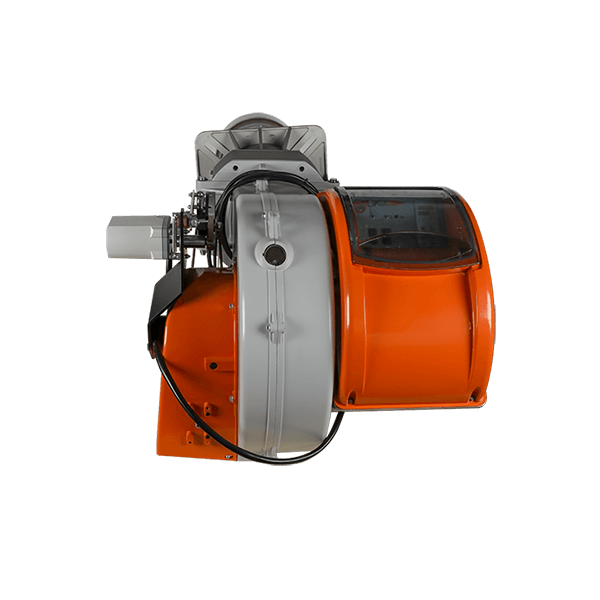

BY210P natural gas burner two stage industrial burner for boiler burner
BY210P Industrial burner is a key component of boiler and furnace heating system. It can provide temperature control and other heating processes in the entire manufacturing facility.
Model: BY210P
Brand: Baiyan
Fuel: Natural Gas
Output Power: 400-2100kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 2T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications: boilers, furnaces, heaters, kilns, ovens, dryers,etc
Features:
1.Two-stage operation
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Air flow adjustment with mechanical cam.
4.Gas train exit: low.
5.Combustion air intake designed to achieve optimum linearity of the air gate opening.
6.Control panel with display diagram for working mode with indication lights .
7.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
8.7-pole socket for burner electric and thermostatic supply
9.4-pole socket for second stage control.
10.Electric control board in light alluminum alloy with IP55 protection rating
Technical Parameters | ||||
Model | BY210P | BY200LXP | BY210MC | |
Output Power | Kw | 400-2100 | 475-1900 | 400-2100 |
Control Mode | two stage flame | slide two stage flame | proportional control | |
Gas Consumption | Sm³/H | 40-210 | 47.5-190 | 40-210 |
Motor Power | kw | 3 | ||
Applicable power supply | AC400v 50Hz | |||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||
NOx | ＜80 | |||
Applicable boiler | T/h | 2 | ||
Kw | 1382 | |||
103*kcal/h | 1190 | |||
Dimension | mm | 1070*800*700 | ||
Weight | Kg | 94 | 95 | 94 |
