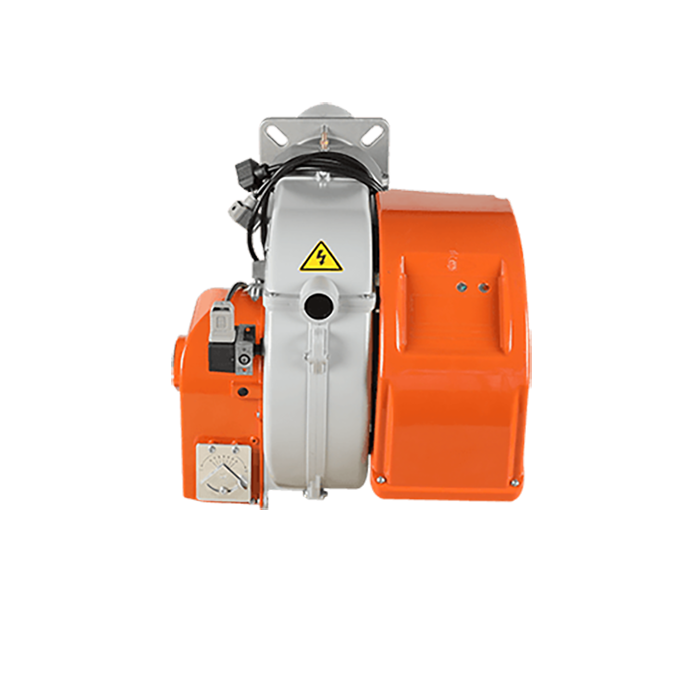

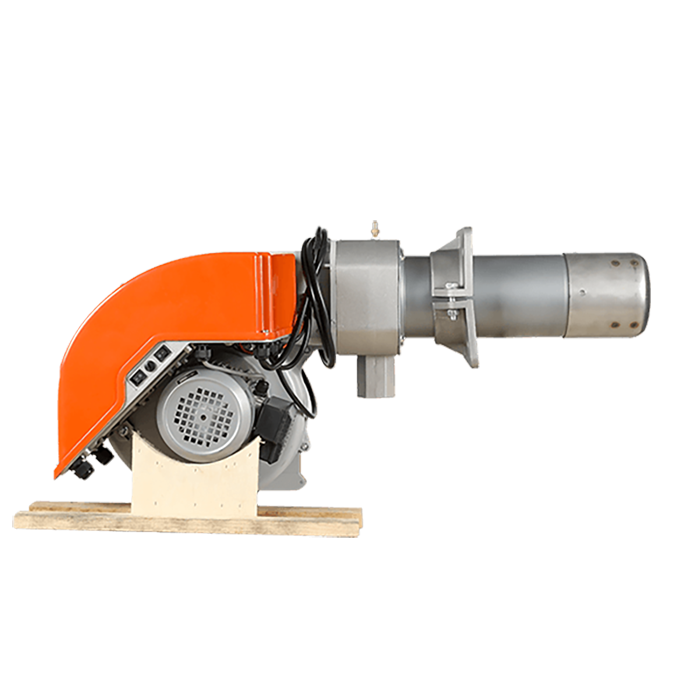

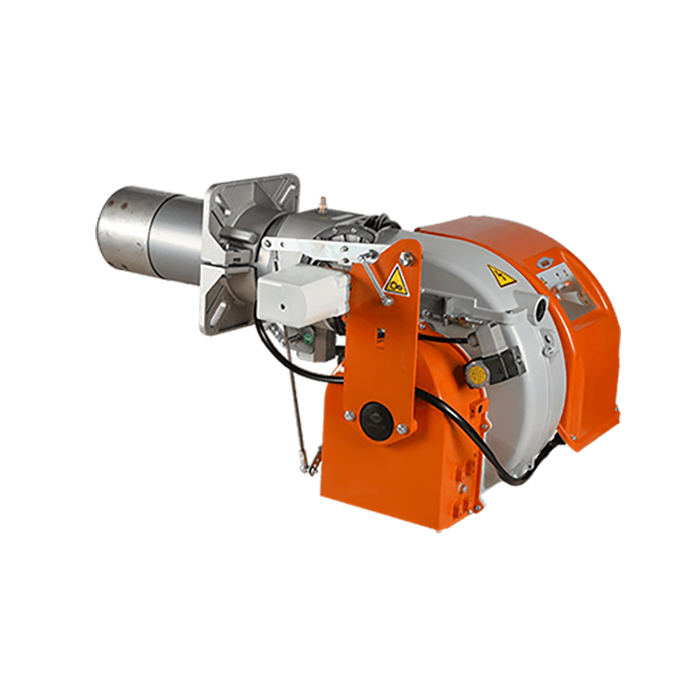

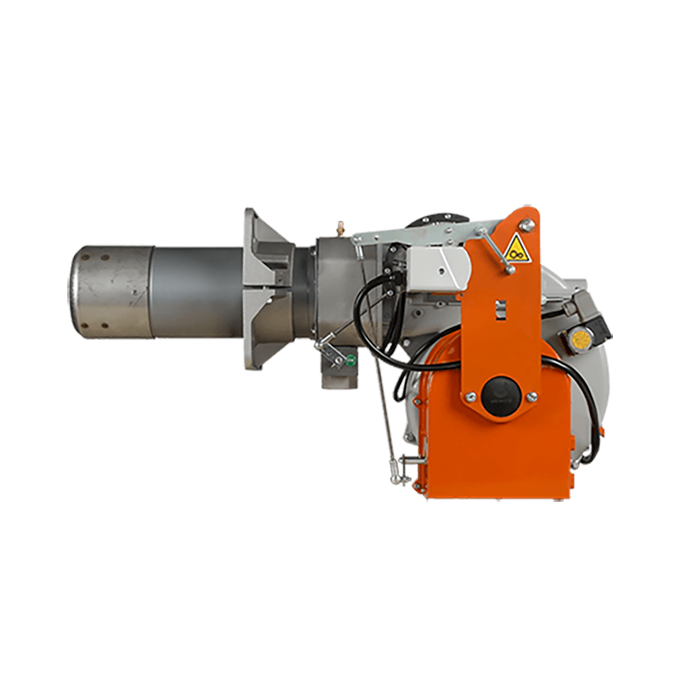

BY45mc Progressive/modulating two-stage gas burners with mechanical cam ipsen industrial burner
BY45mc natural gas industrial burner is a device that provides the natural gas to burn fully under control by mixing with air at optimum ratio. Industrial Burner is a key product for heating technologies.
Model: BY45mc
Output Power: 100-450kw
Control Mode: sliding two stages
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 0.5T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
Brand: Baiyan
MOQ: 1pcs
Delivery terms: Sea/Air/Land
Delivery Port: Ningbo Port
Applications: All kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Features:
1.Two-stage operation
2.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
3.Gas train exit: high/low.
4.7-pole socket for burner electric and thermostatic supply.
5.Gas burner compliant with European standard EN676. Two-stage operation.
6.Regulating combustion air and blast-pipe.
7.4-pole socket for second stage control.
8.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
9.CE version gas train is complete with operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter.
Technical Parameters | |||||
Model | BY45 | BY45P | BY60 | BY60P | |
Output Power | Kw | 100-450 | 100-450 | 120-600 | 120-600 |
Control Mode | single stage flame | two stage flame | single stage flame | two stage flame | |
Gas Consumption | Sm³/H | 10--45 | 10--50 | 12--60 | 12--60 |
Motor Power | kw | 0.5 | 0.5 | 0.74 | 0.74 |
Applicable power supply | AC 230V 50Hz | AC 400v 50Hz | |||
Safety Protection Level | IP 44 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T/h | 0.5 | 0.5 | 0.6 | 0.6 |
Kw | 345 | 345 | 414 | 414 | |
103*kcal/h | 300 | 300 | 360 | 360 | |
Static Pressure | Kpa | 4--5 | 4--5 | 5--6 | 5--6 |
Dynamic Pressure | 3--4 | 3--4 | 4--5 | 4--5 | |
Dimension | mm | 1000*600*510 | 1000*600*510 | 985*580*520 | 985*580*520 |
Weight | Kg | 34 | 34 | 50 | 50 |
