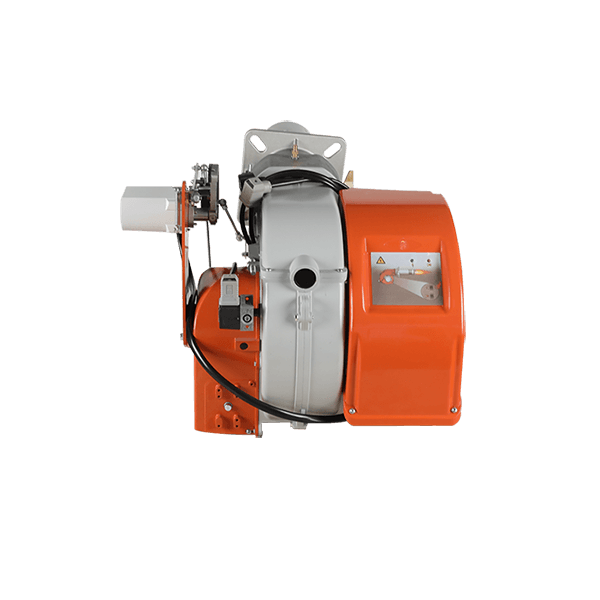

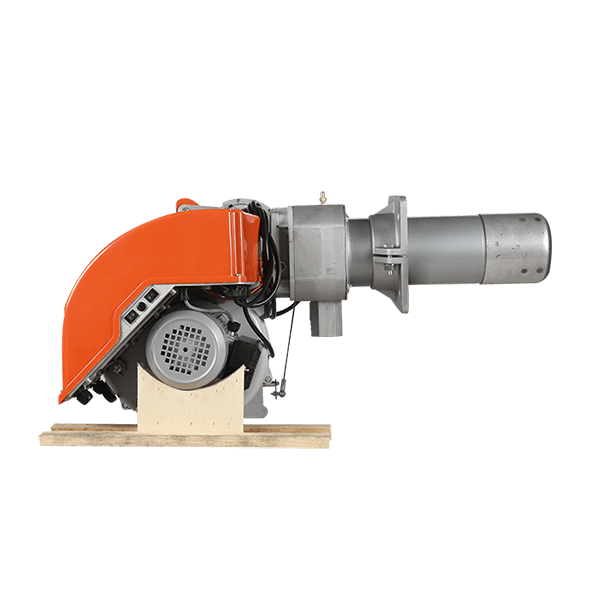

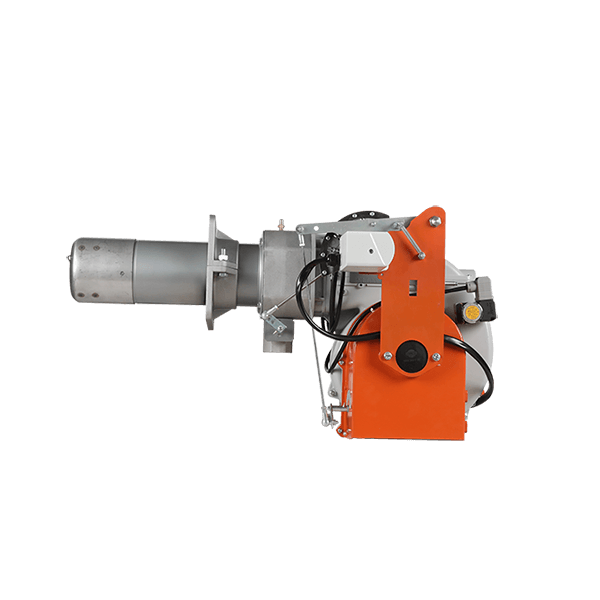

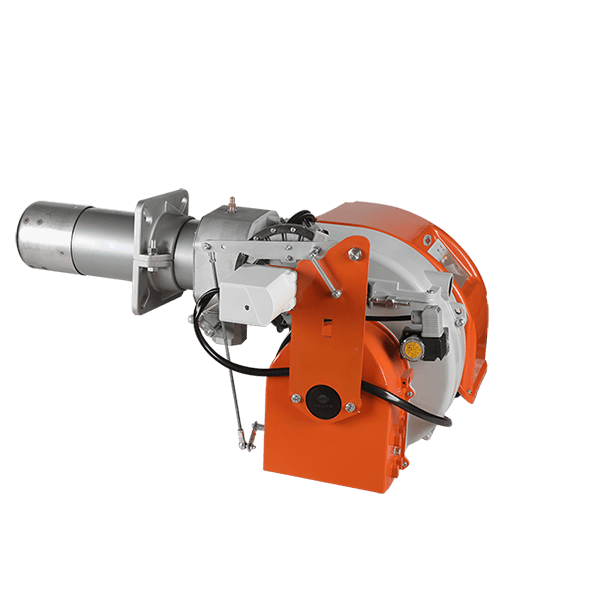

BY60P two stage industrial burner for boiler natural gas
BY60P Industrial burners are an important component of boilers and furnace heating systems that provides temperature control throughout entire manufacturing facilities, as well as other heating processes during manufacturing.
Model: BY60P
Brand: Baiyan
Fuel:Natural gas
Output Power: 120-600kw
Control Mode: two stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 0.6T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms： Sea/Air/Land
Delivery Port: Ningbo Port
Applications: boilers, furnaces, heaters, kilns, ovens, and dryers
Features:
1.Two-stage operation
2.Regulating combustion air and blast-pipe.
3.Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
4.Gas train exit: high/low.
5.Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
6.Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
7.Possibility to choose gas train with valve tightness control.
8.7-pole socket for burner electric and thermostatic supply
9.Fully closing air damper on shutdown to avoid loss of heat through the chimney.
10.4-pole socket for second stage control
Technical Parameters | |||||
Model | BY45 | BY45P | BY60 | BY60P | |
Output Power | Kw | 100-450 | 100-450 | 120-600 | 120-600 |
Control Mode | single stage flame | two stage flame | single stage flame | two stage flame | |
Gasl Consumption | Sm³/H | 10--45 | 10--50 | 12--60 | 12--60 |
Motor Power | kw | 0.5 | 0.5 | 0.74 | 0.74 |
Applicable power supply | AC 230V 50Hz | AC 400v 50Hz | |||
Safety Protection Level | IP 44 （protection level can be improved according to different requirement) | ||||
NOx | ＜80 | ||||
Applicable boiler | T/h | 0.5 | 0.5 | 0.6 | 0.6 |
Kw | 345 | 345 | 414 | 414 | |
103*kcal/h | 300 | 300 | 360 | 360 | |
Static Pressure | Kpa | 4--5 | 4--5 | 5--6 | 5--6 |
Dynamic Pressure | 3--4 | 3--4 | 4--5 | 4--5 | |
Dimension | mm | 1000*600*510 | 1000*600*510 | 1000*600*510 | 1000*600*510 |
Weight | Kg | 40 | 40 | 42 | 42 |
