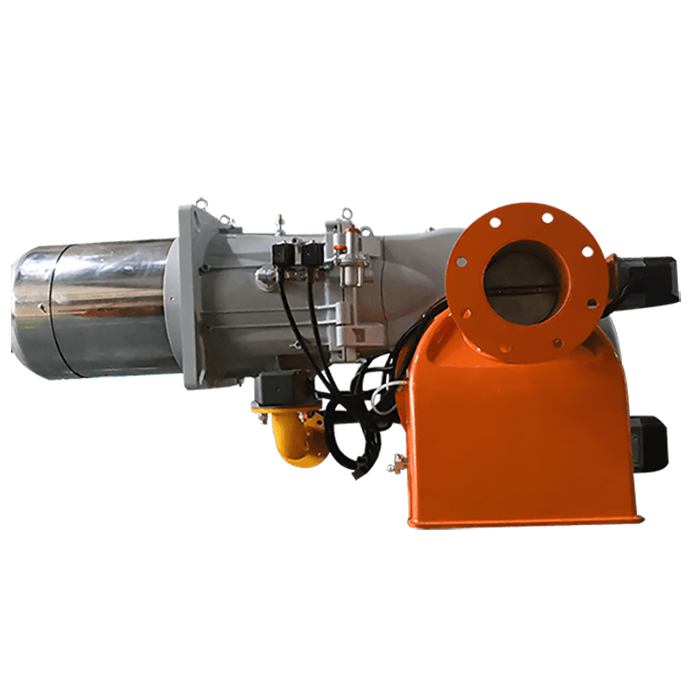

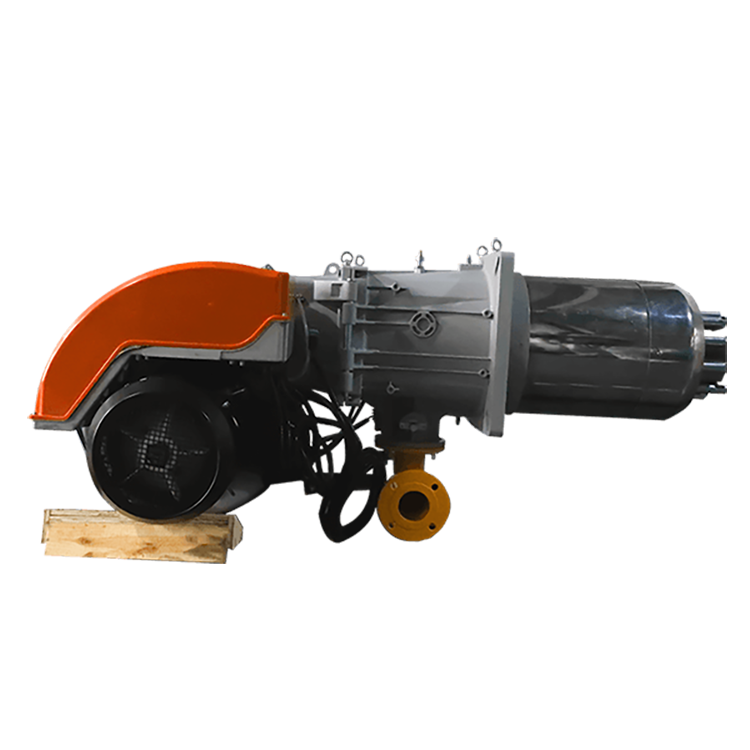

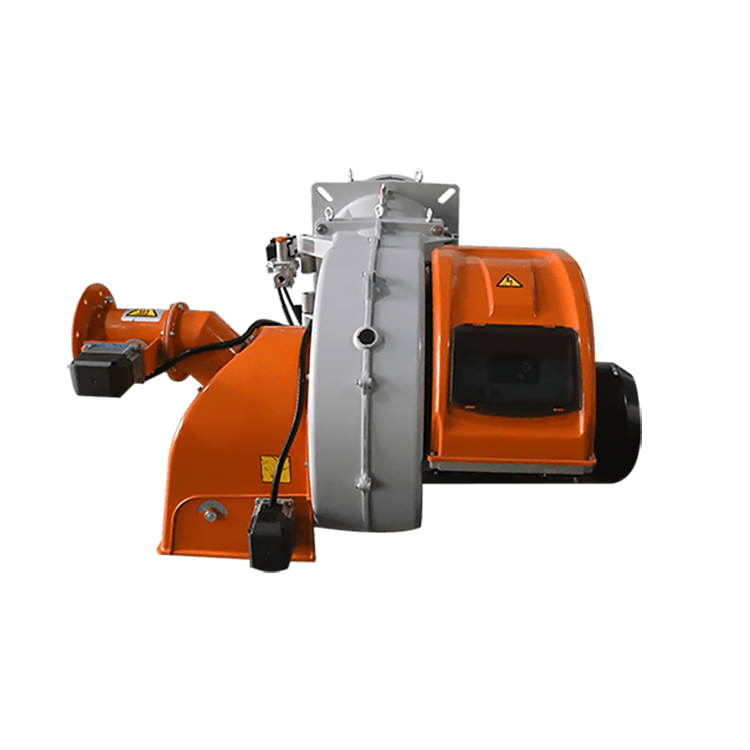

BY650LXME Industrial Air Heating Burner Progressive/modulating 2-stage gas burner Fuel Efficiency Industrial Burner Calibration
Model: BY650LXME
Brand: Baiyan
Fuel: gas ,LPG
Output Power: 600-6500kw
Control Mode: Progressive/modulating two-stage TwoTwo-stage progressive-stage
Applicable Power Supply: AC 400v 50Hz
Applicable Boiler: 2.5-6T/H
Certificate: ISO
Packaging Details:Neutral/Customized packaging
MOQ: 1pcs
Delivery terms: Sea/Air/Land
Delivery Port: Ningbo Port
Our burners are suitable for all kinds of light oil other than gasoline, diesel, aviation kerosene, solvent oil as fuel! Diesel burners are more commonly used.
Technical Parameters | ||||||
Model | BY260MC | BY360MC | BY450LXME | BY650LXME | BY750LXME | |
Output Power | Kw | 450-2600 | 500-3600 | 560-4800 | 600-6500 | 600-7500 |
Control Mode | Progressive/modulating | |||||
Gas Consumption | Sm³/H | 45-260 | 50-360 | 56-480 | 60-650 | 60-750 |
Motor Power | kw | 5.5 | 7.5 | 9.2 | 15 | 18.5 |
Applicable power supply | AC400v 50Hz | |||||
Safety Protection Level | IP 40 （protection level can be improved according to different requirement) | |||||
NOx | ＜80 | |||||
Applicable boiler | T/h | 2.5-6 | ||||
Kw | 1725-4140 | |||||
103*kcal/h | 1480-3540 | |||||
Static Pressure | Kpa | 12--15 | 15--20 | 15--20 | 20--25 | 22--30 |
Dynamic Pressure | 12--15 | 15--20 | 15--20 | 20--25 | 22--30 | |
Dimension | mm | 1070*870*700 | 1070*870*720 | 1500*1150*970 | 1500*1300*970 | |
Weight | Kg | 110 | 112 | 259 | 275 | 310 |
